99-1437-814-05

BINDER  99-1437-814-05  圆形连接器, 763系列, 插头, 5 触点, 公, 螺丝, 电缆安装

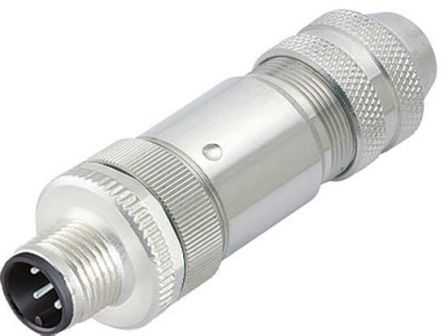

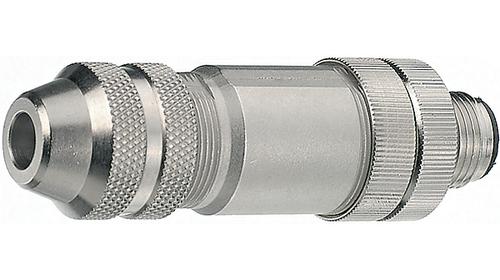

The is a 5-contact 125V/4A male Circular Connector with gold-plated brass contacts, PA contact body and nickel-plated zinc die-casting housing. The 713 series plug with EMI shielded, metal locking ring, M12 screw locking system, screwing termination, cable mounting style. It accepts 18AWG 0.75mm² wire, 4 to 6mm cable outlet.

.

1500V Rated impulse voltage

.

* >100 mating cycles Mechanical operation

.

IP67 Protection rating
