930757101

PKI 100、I 类 4mm 底盘安装测试插座Hirschmann 测试和测量 PKI 100、I 类 4mm 镀镍底盘安装测试插座，带极夹和专用绝缘探头、2mm 十字孔和 M4 端接螺纹。 这些 PKI 100 系列 4mm 测试插座，特别适用于设备底板和开关面板的非旋转安装，壁厚达 3.5mm。 额定电压 30 V 交流/60 V 直流 额定电流 35A CAT I M4 螺纹端接 ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）

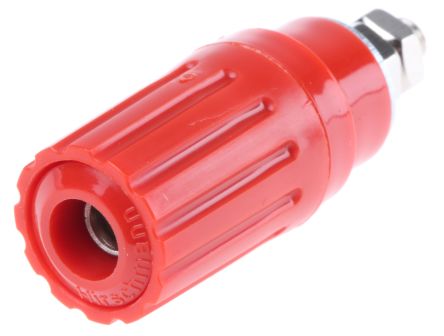

The is a red screw-mount pole clamp Binding Post with captive insulated head, which is held under constant pressure against the insulated rings by a spring. It is made of PA housing with nickel-plated brass contacts. It has 4mm diameter nickel-plated brass threaded bolt with 2mm diameter transverse hole. It is suitable for non-rotating installation in switch panels and equipment chassis with wall thicknesses up to 3.5mm.

.

2mR Contact resistance

.

UL94V-2 Flammability rating

.

-25 to 100°C Temperature range
