9L28034 008H100概述

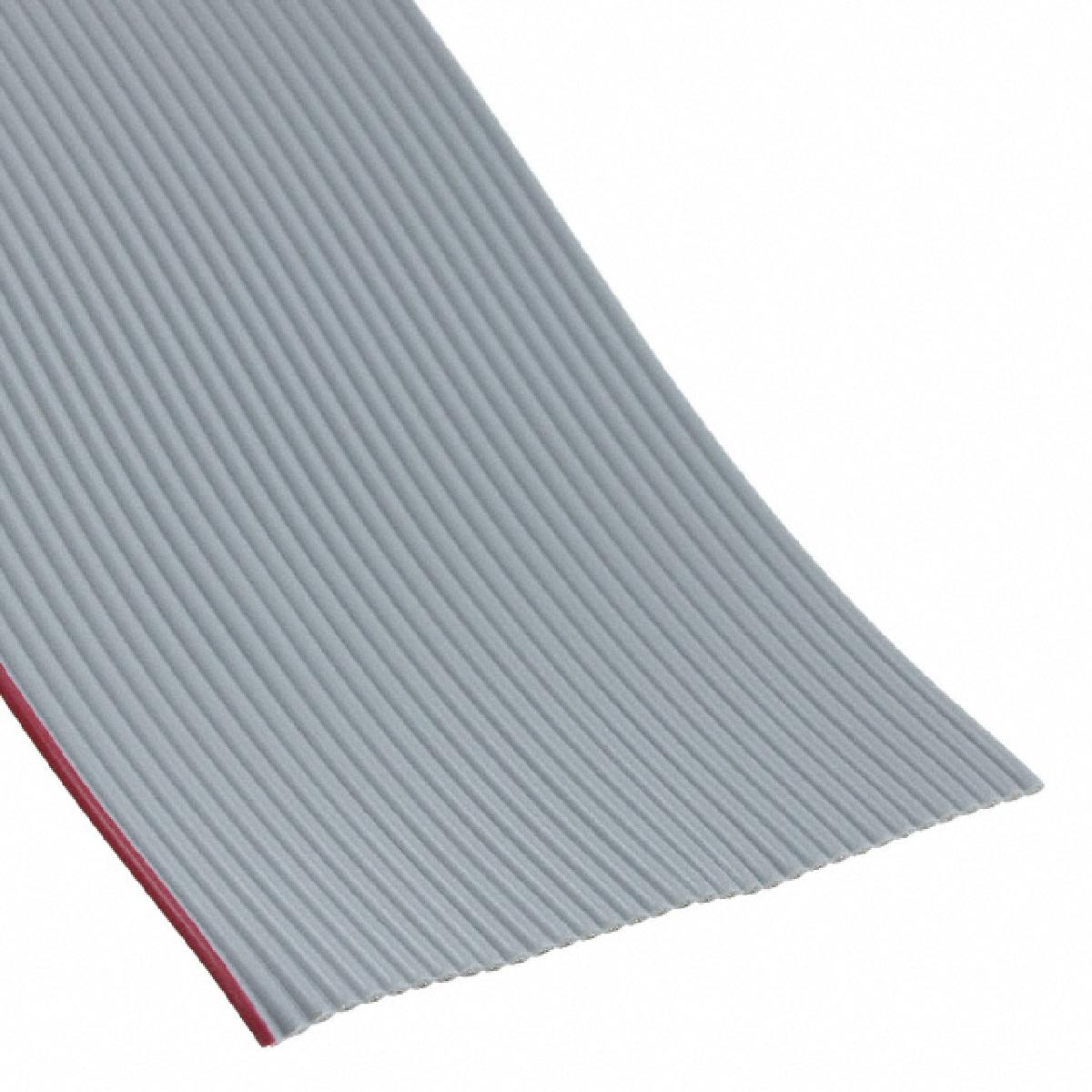

带状电缆, 34 导体, 100英尺, 28AWG

All flat cable types on this page are 28 AWG 7 × 36 stranded and feature 0.050" conductor spacing. PVC insulated, except where noted, and rated 300 V, 105°C.
.
* Voltage Rating:** 300 Vrms. ** Dielectric Withstanding Voltage:** 2000 Vrms. All will terminate to any standard IDC flat cable connector. See Product Index for complete selection. Passes VW-1 vertical wire flame test. UL recognized.

Tinned copper conductors. Gray PVC insulation with red polarity stripe. CSA AMW I A 105°C 300V FT1.

9L28034 008H100中文资料参数规格
技术参数

线规 28 AWG

额定电压DC 300 V

额定电流 1 A

绝缘电阻 10 GΩ

芯数 34

额定电流Max 1 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 300 VAC

额定电压 300 V

外形尺寸

长度 100 ft

高度 0.88 mm

物理参数

颜色 Gray

工作温度 -40℃ ~ 105℃

导体材质 Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买9L28034 008H100
型号: 9L28034 008H100
制造商: Belden Wire & Cable 百通线材
描述:带状电缆, 34 导体, 100英尺, 28AWG
替代型号9L28034 008H100
型号/品牌 代替类型 替代型号对比

9L28034 008H100

Belden Wire & Cable 百通线材

当前型号

当前型号

3365-34

3M

功能相似

9L28034 008H100和3365-34的区别
