固定电感器 2.7K 10%
2.7mH Shielded Molded Inductor 40mA 47.3Ohm Max Axial
立创商城:
2.7mH ±10% 40mA 47.3Ω
得捷:
FIXED IND 2.7MH 40MA 47.3 OHM TH
贸泽:
固定电感器 2.7K 10%
艾睿:

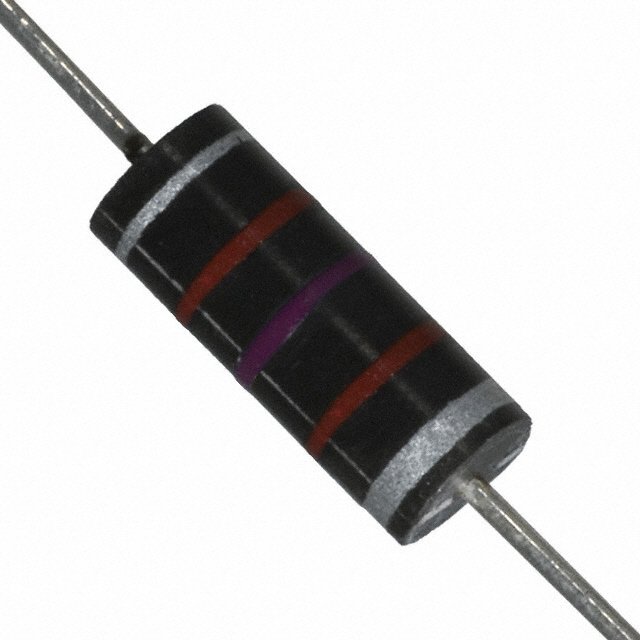

This rf choke 9250A-275-RC leaded inductor from Bourns resists changes in electric current passing through it. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device is made with wirewound technology. This leaded inductor has a maximum DC current of 40m A with a maximum resistance of 47.3 Ohm. It has an inductance of 2.7m H. This product is 10.92 mm long with a diameter of 4.36 mm. Its test frequency is 250K Hz, while its minimum self-resonant frequency is 920K Hz. It has a tolerance of 10%.
Newark:
# BOURNS JW MILLER 9250A-275-RC Axial Leaded High Frequency Inductor, Molded Choke, 9250A Series, 2.7 mH, 40 mA, 47.3 ohm, ± 10%
Electro Sonic:
RF Choke Shielded/Molded Wirewound 2.7mH 10% 250KHz 45Q-Factor Ferrite 40mA 47.3Ohm DCR AXL Bag
额定电流 40 mA
容差 ±10 %
电感 2.7 mH
自谐频率 920 kHz
Q值 45.0
屏蔽 Yes
电感公差 ±10 %
测试频率 250 kHz
电阻DC) ≤47.3 Ω
额定电流DC 40 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 47.3 Ω
安装方式 Through Hole
引脚数 2
封装 Axial
长度 10.41 mm
直径 4.11 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
9250A-275-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
9250-275-RC 伯恩斯 | 完全替代 | 9250A-275-RC和9250-275-RC的区别 |
9250-275 伯恩斯 | 功能相似 | 9250A-275-RC和9250-275的区别 |
