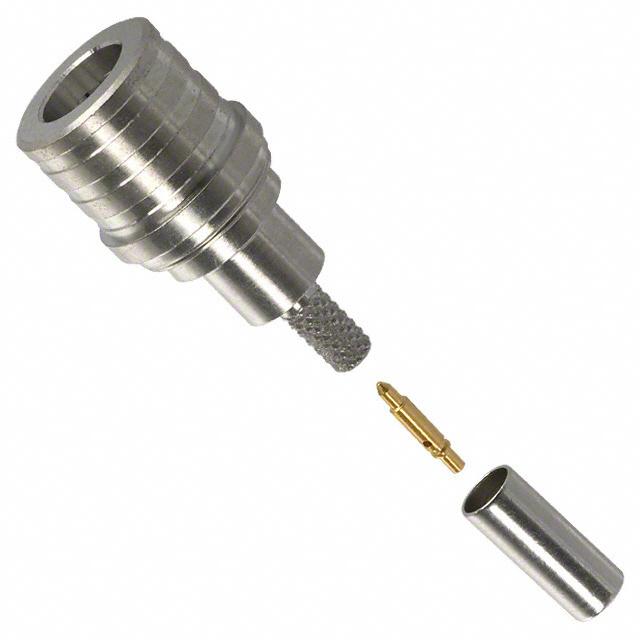

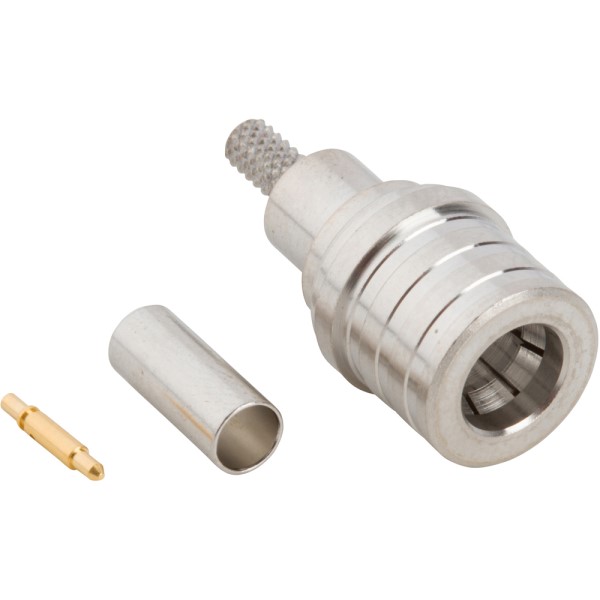

Conn QMA PL 0Hz to 6GHz 50Ω ST Cable Mount
RF"s QMA connector series is a quick disconnect version of the SMA connector.\~Instead of using a threaded coupling mechanism, a new snap-lock mechanism is used.\~This allows the QMA series to maintain very similar electrical performance, while providing the additional benefits of quicker installation and denser packaging solutions for your RF requirements.
** Features:
**
* Operates at the Same Electrical Performance as SMA Up to 6 GHz
* Snap-On Interface for Quick and Easy Installation Can Be Installed 10 Times Faster Than SMA
* Snap-Lock Mechanism Removes Requirement for Wrench Clearance, Allowing for Denser Packaging
* Rotatable 360° After Connection for Flexibility with Installation
**
Applications:- .
- *
* Base Stations
* Instrumentation
* Process Controls
* Cable Assemblies
* Mil/Aero
* Telecom
* Components
* PC/LAN
