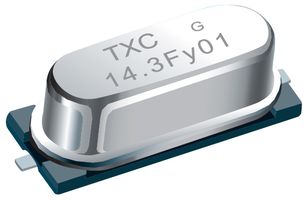

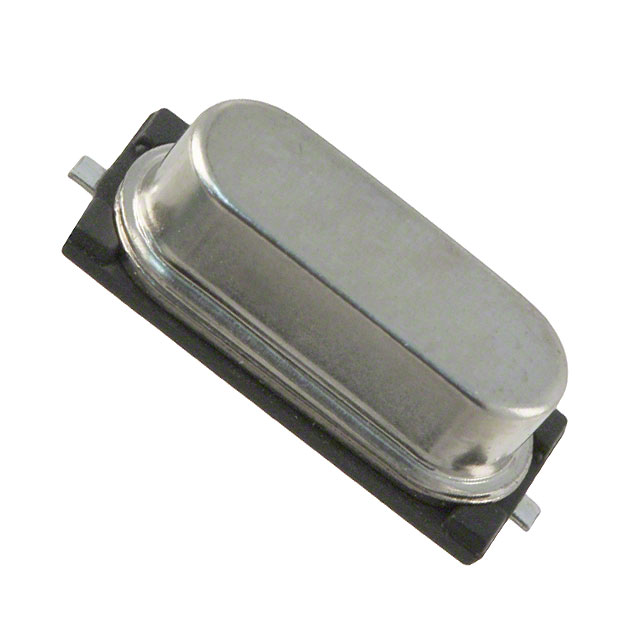

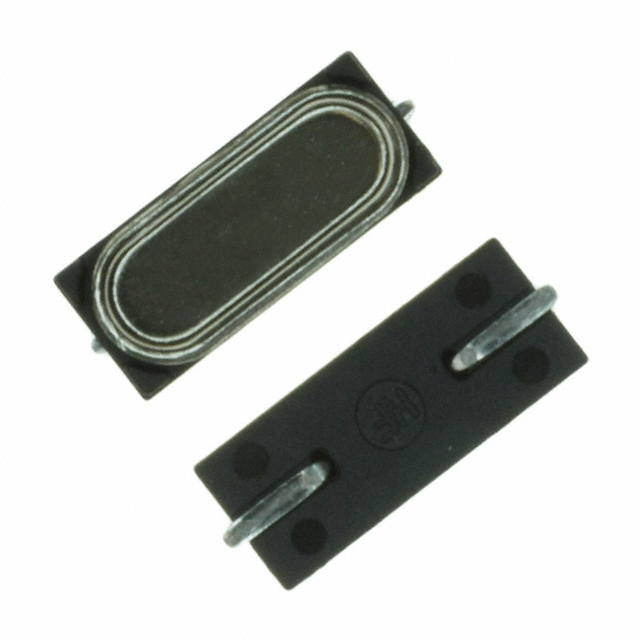

TXC 9C-22.000MAAJ-T Crystal, Surface Mount, 22MHz, SMD, 11.4mm x 4.35mm, 30ppm, 18pF, 30ppm, 9C Series
22MHz ±30ppm Crystal 18pF 30 Ohms HC-49/US
立创商城:
22MHz ±30ppm 18pF
得捷:
CRYSTAL 22.0000MHZ 18PF SMD
艾睿:
Crystal 22MHz ±30ppm Tol ±30ppm Stability 18pF FUND 30Ohm 2-Pin HC-49/S SMD T/R
Verical:
Crystal 22MHz ±30ppm Tol ±30ppm Stability 18pF FUND 30Ohm 2-Pin HC-49/S SMD T/R
Newark:
# TXC 9C-22.000MAAJ-T Crystal, Surface Mount, 22 MHz, SMD, 11.4mm x 4.35mm, 30 ppm, 18 pF, 30 ppm, 9C Series
频率 22 MHz
频率稳定度 ±30 ppm
频率容差 ±30 ppm
等效串联电阻ESR 30 Ω
负载电容 18 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 HC-49
长度 11.4 mm
宽度 4.8 mm
高度 3.8 mm
封装 HC-49
工作温度 -20℃ ~ 70℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
