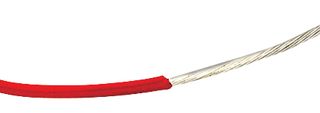

9983 0131000图片1

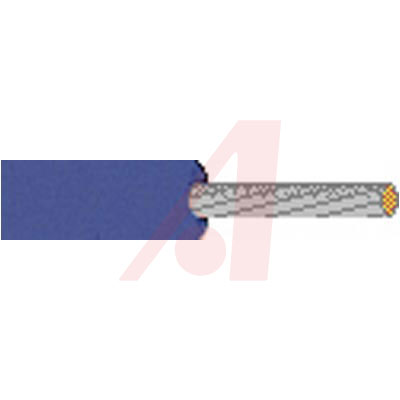

9983 0131000图片2
9983 0131000图片3
9983 0131000图片4
9983 0131000图片5
9983 0131000图片6
9983 0131000概述

BELDEN 9983 0131000 Wire, Hook Up, PVC, Blue, 22AWG, 7 x 30AWG, 1000Ft

0.010"" PVC Insulation, 300 V, 80°C, UL AWM Style 1061, Hook-Up Wire with Tinned Copper Conductor

** PVC Insulation Materials**

Vinyl plastic insulation is fast stripping, resists oil, solvents, and ozone. The colors are bright and remain distinct after processing. Applications include motors, transformers, fluorescent ballasts and fixtures, switchboards, panels, controls, rectifiers and electronic circuits. Meets VW-1 Vertical Wire Flame Test in many cases.

All hook-up wire has either tinned copper conductor insulated with extruded PVC, or stranded silver-coated conductor insulated with extruded TFE Teflon®. PVC is flame and ozone resistant, as well as being inert to most chemicals, oils and solvents. Teflon® is a fluorinated thermoplastic with outstanding thermal, physical and electrical properties.

Solid conductors suitable for wire wrap applications.

Solid conductors are suitable for wire wrap applications.

9983 0131000中文资料参数规格
技术参数

线规 22 AWG

额定电压DC 300 V

工作温度Max 80 ℃

额定电压 300 V

外形尺寸

长度 304.8 m

物理参数

颜色 Blue

绝缘材质 PVC

导体材质 Tinned Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买9983 0131000
型号: 9983 0131000
制造商: Belden Wire & Cable 百通线材
描述:BELDEN 9983 0131000 Wire, Hook Up, PVC, Blue, 22AWG, 7 x 30AWG, 1000Ft
