9923 0051000概述

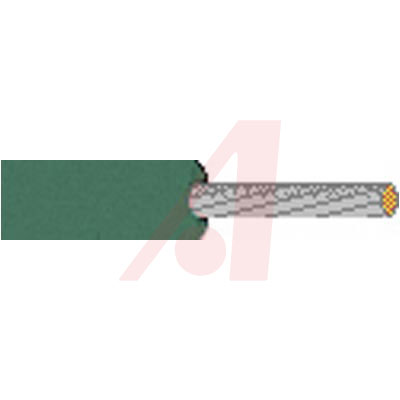

Hook-up Wire 24AWG 304.8m 1.42mm Tinned Copper Green 300V

0.015 in. Insulation, 80 to 105°C, 300 V, PVC Insulation, Dual-Rated Hook-Up Wire

** PVC Insulation Materials**

Vinyl plastic insulation is fast stripping, resists oil, solvents, and ozone. The colors are bright and remain distinct after processing. Applications include motors, transformers, fluorescent ballasts and fixtures, switchboards, panels, controls, rectifiers and electronic circuits. Meets VW-1 Vertical Wire Flame Test in many cases.

All hook-up wire has either tinned copper conductor insulated with extruded PVC, or stranded silver-coated conductor insulated with extruded TFE Teflon®. PVC is flame and ozone resistant, as well as being inert to most chemicals, oils and solvents. Teflon® is a fluorinated thermoplastic with outstanding thermal, physical and electrical properties.

Rated 105°C, 300 V. Rated 600 V peak for electronic circuits, and internal wiring of electronic and electrical equipment.

Rated 600 V peak for electronic circuits, and internal wiring of electronic and electrical equipment.

9923 0051000中文资料参数规格
技术参数

线规 24 AWG

额定电压DC 300 V

工作温度Max 80 ℃

额定电压 300 V

外形尺寸

长度 304.8 m

物理参数

颜色 Green

绝缘材质 PVC

导体材质 Tinned Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买9923 0051000
型号: 9923 0051000
制造商: Belden Wire & Cable 百通线材
描述:Hook-up Wire 24AWG 304.8m 1.42mm Tinned Copper Green 300V
