917-43-210-41-005000

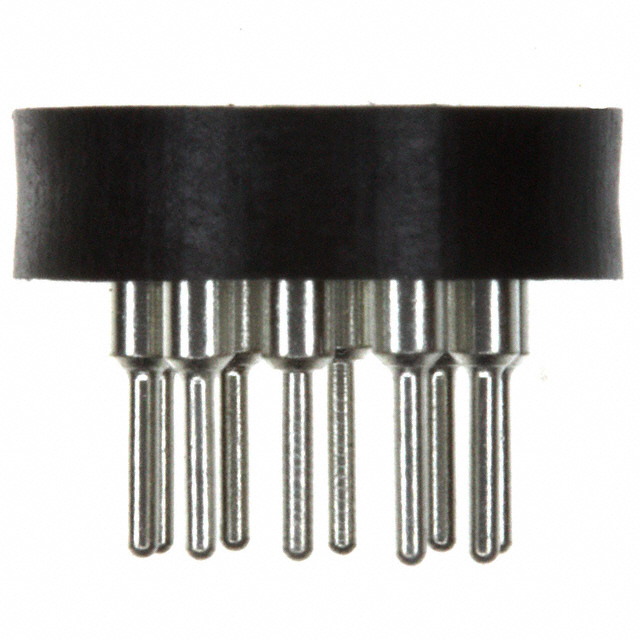

CONN SOCKET TRANSIST TO100 10POS

Through-Hole Mount

Accepts .015"- .025" 0,38 - 0,635 mm dia leads Through Hole

Packaged in Tubes

得捷:
CONN SOCKET TRANSIST TO100 10POS

艾睿:
This transistor socket 917-43-210-41-005000 connector socket from Mill-Max Mfg. Corp. expands your design options by giving you a strong and tight connection for multi-wired cables. This SKT connector&s;s 10 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a maximum voltage rating of 150 VDC|100VAC. It has a socket type gender. It has a straight body orientation. 917-43-210-41-005000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. This product is 10.01 mm deep. It uses the solder termination method.

Allied Electronics:
IC & Component Sockets TO-100 10 PIN

Chip1Stop:
Conn Transistor Socket SKT 10 POS Solder ST Thru-Hole Tube

Verical:
Conn Transistor Socket SKT 10 POS Solder ST Thru-Hole Tube
