Res Conductive Plastic POT 25KΩ 20% 0.5W1/2W 1Turn 6.35mm Pin Panel Mount/Through Hole
25k 欧姆 1 组 线性 面板安装 电位计 无 1 匝 导电塑料 1W PC 引脚
得捷:
POT 25K OHM 1W PLASTIC LINEAR
贸泽:
Potentiometers 25K 20% 16MM PANEL CONTROL
Chip1Stop:
Res Conductive Plastic POT 25K Ohm 20% 1W 1Elec/1MechTurn 6.35mm 31.75 X 15.88 X 17.46mm Pin Panel Mount/Through Hole
Newark:

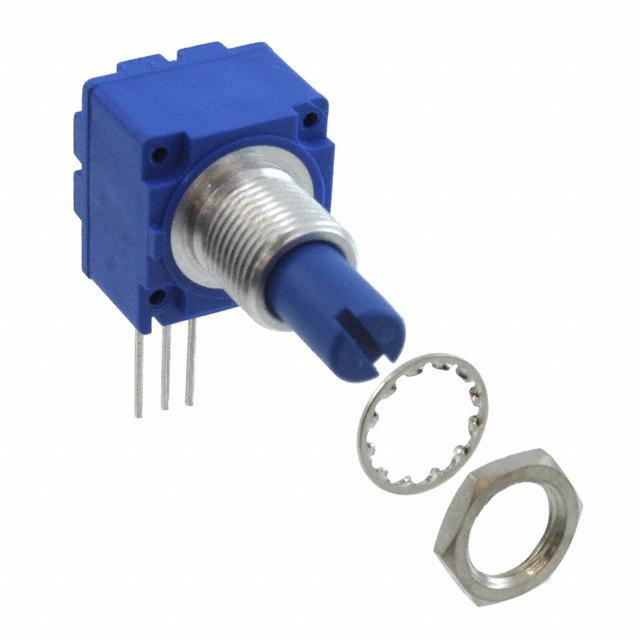

# BOURNS 91A1A-B24-B17L Rotary Potentiometer, Conductive Plastic, 25 kohm, 500 mW, ± 20%, 91 Series, 3 Turns, Linear
AMEYA360:
POT 25K OHM 5/8" SQ 1W PLAS
额定电压DC 500 V
容差 ±20 %
额定功率 500 mW
电阻 25 kΩ
阻值偏差 ±20 %
安装方式 Through Hole
封装 Square - 0.625" L x 0.500" W x 0.687" H 15.88mm x 12.70mm x 17.45mm
封装 Square - 0.625" L x 0.500" W x 0.687" H 15.88mm x 12.70mm x 17.45mm
工作温度 40℃ ~ 125℃
温度系数 ±1000 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
