9190A-DW-156

9190A-DW-156图片1
9190A-DW-156图片2
9190A-DW-156图片3
9190A-DW-156概述

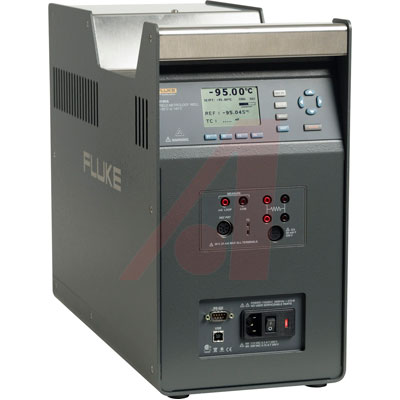

FLUKE CALIBRATION 9190A-DW-156 Calibrator, RTD, Thermocouple, Thermometer, Sensor, 480mm, 205mm, 380mm, ± 0.05℃, 16kg

Calibrate everything from –95 °C to 140 °C with one instrument, best in class stability, and without messy fluids.

The Calibration 9190A Ultra-Cool Field Metrology Well is the most accurate and stable, cold temperature dry-block on the market. It’s ideal for applications that demand strict quality control and regulatory process compliance. These applications include on-location validation and calibration of RTDs, thermocouples, thermometers, and sensors used with process control equipment such as medical freezers, laboratory refrigerators, cold rooms, blood banks, sterilizers autoclaves, and freeze dryers.

Each unit includes: 1X Dry-Well, 1X Insert-A, 1X Power Cord, 1X Usb Cable, 1X User Manual Cd, 1X 9930 Interface-It Software, 1X Report Of Cal, 1Xwell Insulator, 1X Insert Removal Tool, 4X Clamp Ferrites

**Features**

* Wide temperature range: –95 °C to 140 °C

* Accuracy: ± 0.2 °C full range

* Best-in-class stability: ± 0.015 °C full range

* Cools from 23 °C to –95 °C in 90 minutes

* Portable: weighs only 16 kg 35 lbs

* Built-in front and back handles for easy two-handed carry

* Conforms with EURAMET cg-13 guidance on measurement practices for temperature calibrators

9190A-DW-156中文资料参数规格
技术参数

精度 ±0.05 ℃

外形尺寸

宽度 205 mm

高度 480 mm

物理参数

重量 16 kg

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买9190A-DW-156
型号: 9190A-DW-156
制造商: Fluke
描述:FLUKE CALIBRATION 9190A-DW-156 Calibrator, RTD, Thermocouple, Thermometer, Sensor, 480mm, 205mm, 380mm, ± 0.05℃, 16kg
