9-6437287-8

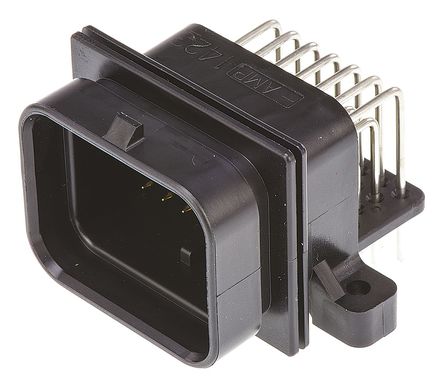

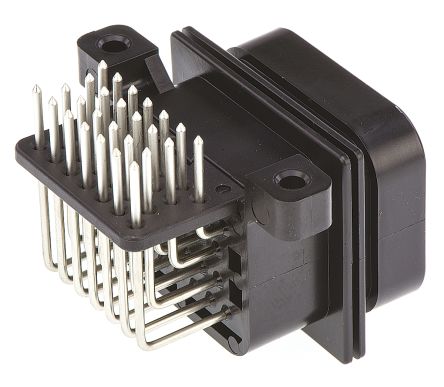

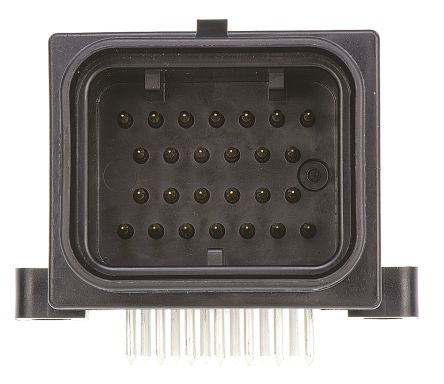

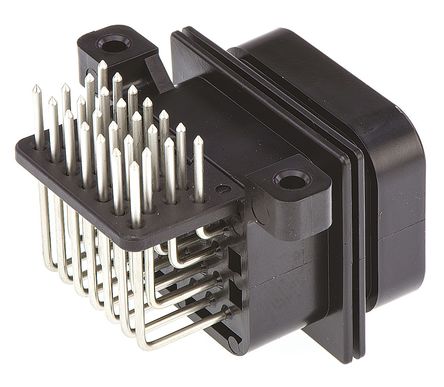

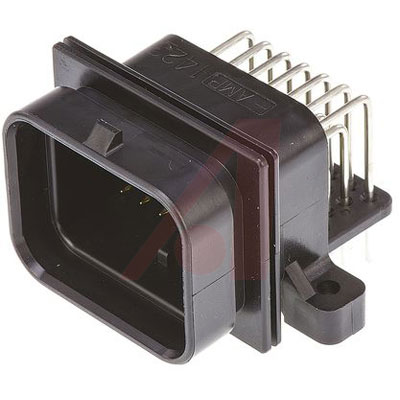

TE CONNECTIVITY  9-6437287-8  连接器, 母, 26路, 1.5MM

SUPERSEAL 系列 1.0 引脚管座

SUPERSEAL 垂直安装 1.0mm 引脚管座，具有 IP67 密封、聚酯外壳和镀金黄铜触点。 这些 SUPERSEAL 汽车电线有键接类型和锁定类型可供选择。 有关匹配的插头外壳，请参见典型库存号 719-9671。

得捷:
CONN HEADER 26POS R/A GOLD T/H

欧时:
### TE Connectivity SUPERSEAL 系列 1.0 引脚管座SUPERSEAL 垂直安装 1.0mm 引脚管座，具有 IP67 密封、聚酯外壳和镀金黄铜触点。 这些 SUPERSEAL 汽车电线连接器有键接类型和锁定类型可供选择。 有关匹配的插头外壳，请参见典型库存号 719-9671。键接类型和锁定 --- **库存号** | **制造商部件号** | **键接类型** | **锁定** 726-7036 | 9-6437287-8 | 1（4 行） | 上 726-7011 | 6437288-4 | 2（4 行） | 降低 718-8895 | 6437288-6 | 1（4 行，垂直） | 上 726-7020 | 6473418-1 | 2（4 行，垂直） | 上 726-7023 | 6473711-1 | 1（2 行） | 上 719-9677 | 6437288-1 | 1（4 行） | 上 726-7027 | 6437288-2 | 2（4 行） | 上 719-9680 | 6437288-3 | 1（4 行） | 上 726-7036 | 6437288-5 | 1（4 行） | 降低 技术参数 --- 额定值 | 最大值 60 V 交流 14mA 压接材料： |   \- 插片 | 镀锡黄铜 \- 插座 | 镀锡磷青铜 触点电阻 | 最大 30 mΩ 电线尺寸范围： | 0.35 - 0.5 mm2   | 1.0 - 1.5 mm2 绝缘材料 | 聚酰胺 6.6 玻璃充满 额定温度 | \- 40° 到 +125 °C

立创商城:
3mm 弯插

艾睿:

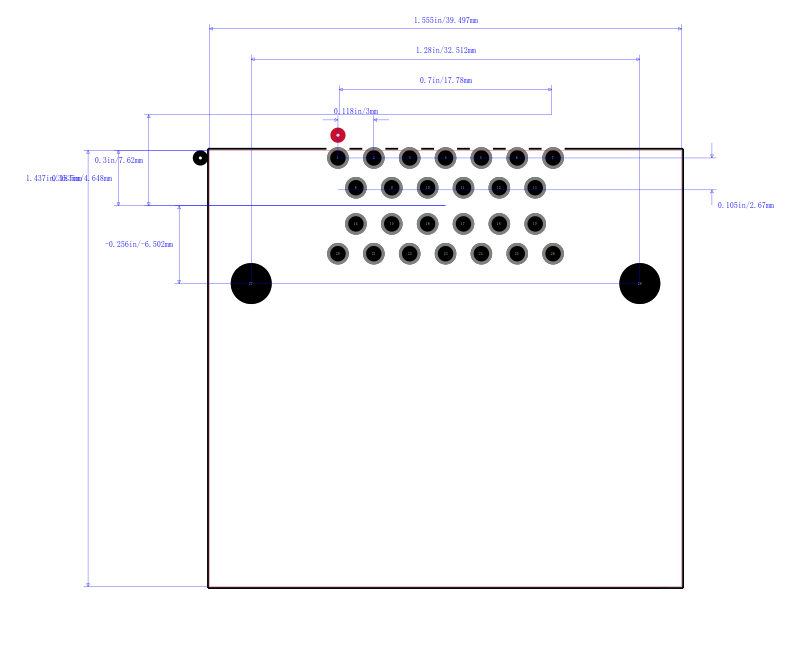

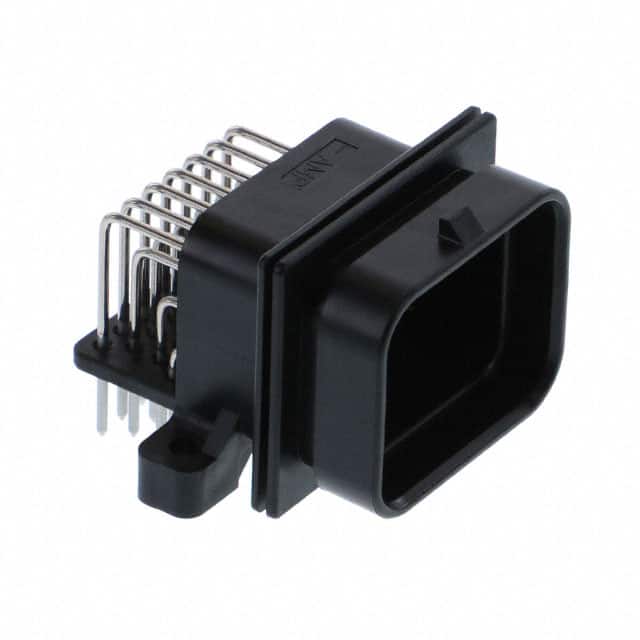

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 9-6437287-8 header connector from TE Connectivity. This RCP connector&s;s 26 contacts that are made out of brass and plated with gold over nickel. It has a right angle body orientation. This is a 4-row connector. It has a receptacle type gender. Its pitch is 3 mm. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 39.5 mm long, 28.15 mm tall and 36.5 mm deep. This connector has an operating temperature of -40 to 125 °C. It uses the solder termination method. 9-6437287-8 is housed in polyester.

Allied Electronics:
SUPER SEAL Series; 26 Way Through Hole Plug Header; with Solder Termination

安富利:
Conn Wire to Board RCP 26 POS 3mm Solder RA Thru-Hole Tube

TME:

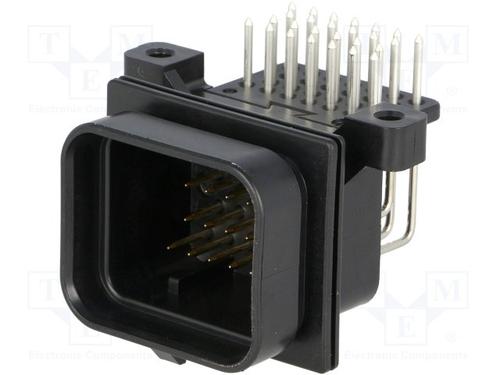

Connector: automotive; Super Seal 1.0mm; socket; male; PIN:26

Verical:
Conn Wire to Board RCP 26 POS 1.5mm Solder RA Thru-Hole Automotive Tube

Newark:
# TE CONNECTIVITY  9-6437287-8  CONNECTOR, RCPT, 26POS, 1.5MM

MASTER:
SUPER SEAL CONNECTOR UPPER LOCK CAP HOUSING 26POS. ASS"Y

Powell:
SUPER SEAL 26POS CAP ASSY

Electro Sonic:
SUPER SEAL 26POS CAP ASSY H AU
