97-3106A-18-16P

97-3106A-18-16P图片1
97-3106A-18-16P图片2
97-3106A-18-16P图片3
97-3106A-18-16P图片4

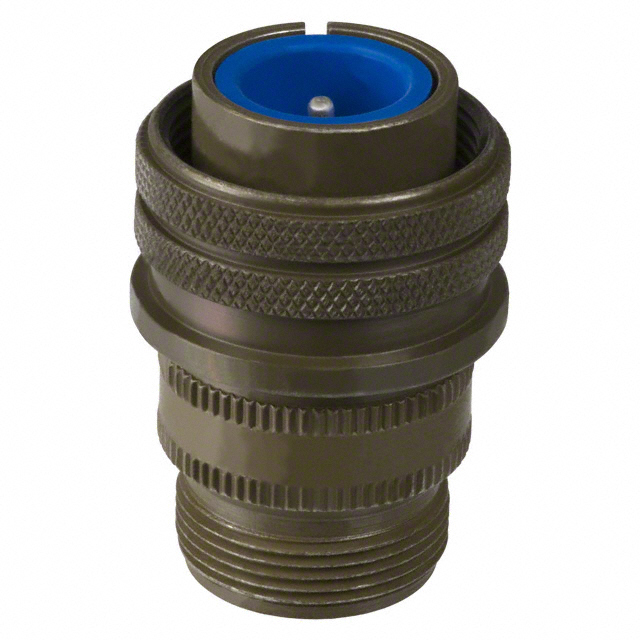

97-3106A-18-16P图片5
97-3106A-18-16P图片6
97-3106A-18-16P图片7
97-3106A-18-16P图片8
97-3106A-18-16P概述

环形MIL规格连接器 1P Straight Pin Plug Sz 18 Solder

Circular 97 Series Threaded Connectors with Solder Contacts MIL-C-5015 Type

Circular 97 Series Threaded Connectors with Solder Contacts MIL-C-5015 Type

MS/Standard Cylindrical

with Solder Contacts MIL-C-5015 Series 1 Type

Accessories For 97 Series Connectors

97 Series Receptacles


得捷:
CONN PLUG MALE 1P SILV SLDR CUP


贸泽:
环形MIL规格连接器 1P Straight Pin Plug Sz 18 Solder


安富利:
Conn MIL-C-5015 Circular PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port


Chip1Stop:
Conn MIL-C-5015 Circular PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port Automotive


Verical:
Conn Cylindrical Circular PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port Automotive


Electro Sonic:
Conn Circular PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port Automotive Medical


97-3106A-18-16P中文资料参数规格
技术参数

触点数 1

极性 Male

线规 12.0 AWG

触点电镀 Silver

额定电压DC 4.20 kV

额定电流 23.0 A

针脚数 1

额定电压 4200VDC, 3000VAC

封装参数

安装方式 Solder

外形尺寸

长度 49.88 mm

物理参数

颜色 Olive

触点材质 Copper

绝缘材质 Plastic

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC标准 No SVHC

军工级 Yes

数据手册

在线购买97-3106A-18-16P
型号: 97-3106A-18-16P
描述:环形MIL规格连接器 1P Straight Pin Plug Sz 18 Solder
