9842

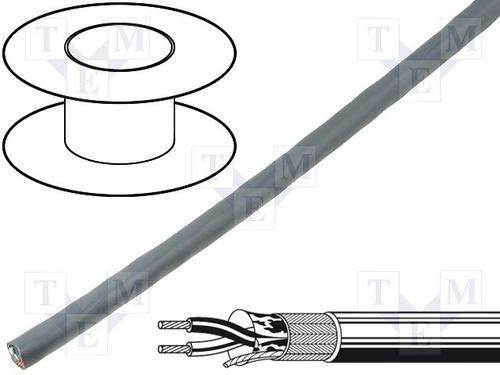

Computer Cable Tape Polyethylene 4Conductors 24AWG 8.64mm 300VAC Bulk

The from Belden is a multi conductor low capacitance computer cable for EIA RS485 applications. This cable is approved by UL standard.

.

Two twisted pairs, 24AWG stranded 7x32 tinned copper conductors

.

Polyethylene insulation

.

Overall Beldfoil 100% coverage and tinned copper braid shield 90% coverage

.

Polyvinyl chloride PVC outer jacket

.

Operating temperature range from -30°C to 80°C

.

Overall nominal diameter is 8.636mm

.

Nominal characteristic impedance of 120 ohm

.

Nominal conductor DC resistance DCR of 78.744ohm/Km at 20°C

.

Maximum operating voltage of 300Vrms according to UL

.

Maximum recommended current of 2.1A per conductor at 25°C
