97-24-6P概述

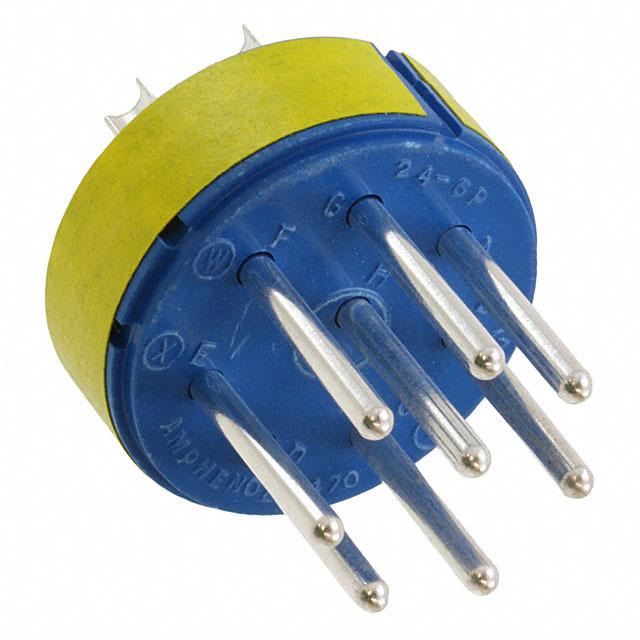

CONN CIRC INSERT 8POS PIN

针位圆形


得捷:
CONN MALE INSERT 8P SOLDER CUP


欧时:
97 series 24-6 insert, pin contacts


艾睿:
Make the perfect wired connection with this 97-24-6P connector contact from Amphenol, a simple and effective form of connection binding. It has a straight body orientation. This has a Connector Circular connector. This connector contact has an operating temperature range of -55 °C to 125 °C. It uses the solder termination method.


Verical:
Contact PIN Solder ST Automotive Medical


Newark:
# AMPHENOL INDUSTRIAL  97-24-6P  97 SERIES SOLDER TYPE INSERTS, BODY STYLE, CRIMP/SOLDER TERMINATION, 24 SHELL SIZE, 24-6 INSERT ARRANGEMENT, GENDER, 8 CONTACTS


Online Components:
Contact PIN Solder ST Automotive


Electro Sonic:
Contact PIN Solder ST Automotive


97-24-6P中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Silver

工作电压 700 V

额定电流 23 A

针脚数 8

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Solder

物理参数

触点材质 Copper Alloy

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 汽车级,工业级

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free
