973501100概述

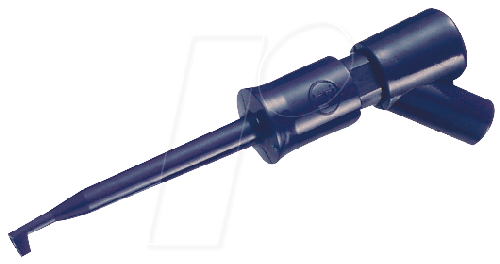

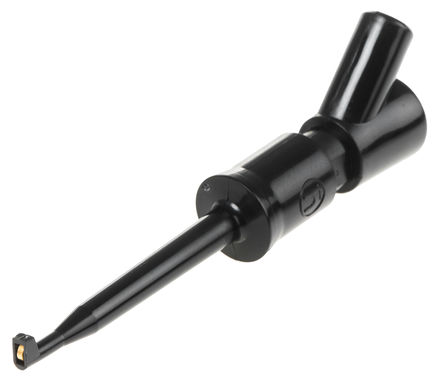

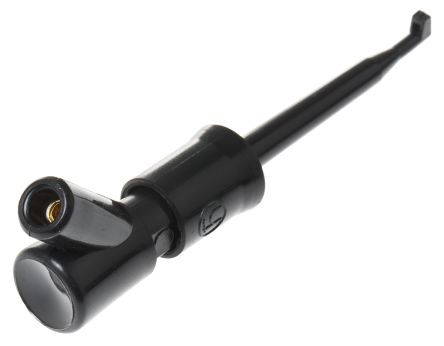

KLEPS 2 Miniature Clamp-Type Test Probe, 2 mm### KLEPS 2 BU Miniature clamp-type test probe with Ø 2 mm socket connector Gold-plated contact spring made from copper beryllium Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Suitable for attaching to wire wrap rods to a maximum 1 x 1 mm ### KLEPS 2Miniature clamp-type test probe with soldered connection. Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Remove actuation head when soldering; after connecting the cable, press as far as possible until it clicks into place ### 钩状夹

The is a miniature clamp-type Test Probe with 2mm diameter socket connection. Gold-plated copper-beryllium contact spring. Gold-plated sprung bronze contact hook for wires up to a maximum diameter of 2mm. Suitable for connection to wrap posts up to a maximum of 1x1mm.

.
Black housing

欧时:
KLEPS 2 Miniature Clamp-Type Test Probe, 2 mm### KLEPS 2 BU Miniature clamp-type test probe with Ø 2 mm socket connector Gold-plated contact spring made from copper beryllium Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Suitable for attaching to wire wrap rods to a maximum 1 x 1 mm### KLEPS 2Miniature clamp-type test probe with soldered connection. Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Remove actuation head when soldering; after connecting the cable, press as far as possible until it clicks into place### 钩状夹


e络盟:
触芯, Connector, Hook, Miniature, Black, LAS 30, 测试夹, 拔钉锤, 6 A, 66 mm


Newark:
HOOK, TEST, MINIATURE, BLACK, LAS 30


973501100中文资料参数规格
技术参数

触点电镀 Gold

额定电流 6 A

接触电阻 10.0 mΩ

额定电压 30VAC, 60VDC

外形尺寸

长度 66 mm

物理参数

颜色 Black

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买973501100
型号: 973501100
制造商: Hirschmann
描述:KLEPS 2 Miniature Clamp-Type Test Probe, 2 mm ### KLEPS 2 BU Miniature clamp-type test probe with Ø 2 mm socket connector Gold-plated contact spring made from copper beryllium Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Suitable for attaching to wire wrap rods to a maximum 1 x 1 mm ### KLEPS 2 Miniature clamp-type test probe with soldered connection. Contact hook made from gold-plated spring bronze for wires to a maximum Ø 2 mm Remove actuation head when soldering; after connecting the cable, press as far as possible until it clicks into place ### 钩状夹
