930727101

4 mm，30 A 系统束状引脚插头，带有耐磨、柔性绝缘套和通孔 焊接终端，最大电缆截面直径为 2.5 mm² 触点材料为镀镍黄铜 ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）

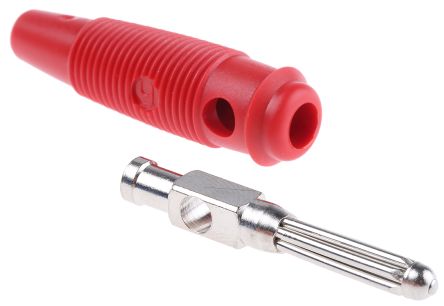

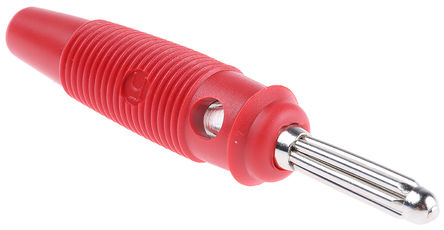

The BUELA 30 K series from are 4mm spring loaded banana plugs. These plugs have multiple spring wire plugs, shatter proof feature and flexible insulated sleeve with transverse hole. The tapering sleeve end serves as kinking protection for lead. It provides screw connection up to 2.5mm² maximum cable cross section.

.

Nickel plated brass contact

.

IEC 61010, CAT I measurement category

.

Solder terminations

.

Rated voltage of 30VAC / 60VDC

.

Rated current of 30A

.

Contact resistance is 3mohm

.

PVC housing material

.

Temperature range from -25°C to 70°C

.

Available in variety of colours
