930103188

HIRSCHMANN TEST AND MEASUREMENT  930103188  插座，4MM 黄色/绿色 5包

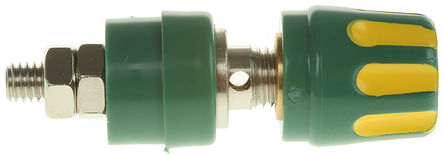

The 930103100 is a 4mm Pole Clamp Socket with claw edge, captive insulated head, insulated ring, panel mounting, nickel-plated brass threaded bolt with Ø2mm transverse hole. For insulated, non-rotating installation in equipment chassis and switch panels with a wall thickness up to 2mm.

.

IEC 61010, CAT I measurement category

.

Available in variety of colours

.

4mm diameter unsprung socket and 2mm cross hole diameter

.

M4 threaded termination and screw mounting

.

Rated voltage of 30VAC / 60VDC

.

Contact resistance is 2mohm

.

Nickel plated brass contacts

.

PA housing material

.

Temperature range from -25°C to 100°C
