930103703

PKI 10 A 镀金，I 类 4mm 底盘安装测试插座Hirschmann 测试和测量 PKI 10 A 镀金 I 类 4mm 镀金底盘安装测试插座，带电极夹爪边缘和系留绝缘头和绝缘环、2mm 十字孔和 M4 端接螺纹。 这些 PKI 10 A 镀金系列 4mm 测试插座，特别适用于壁厚高达 2mm 的设备底板和开关面板中的绝缘非旋转安装。 额定电压：30V 交流/60V 直流 额定电流：35A CAT I 螺钉安装 M4 端接螺纹 ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）

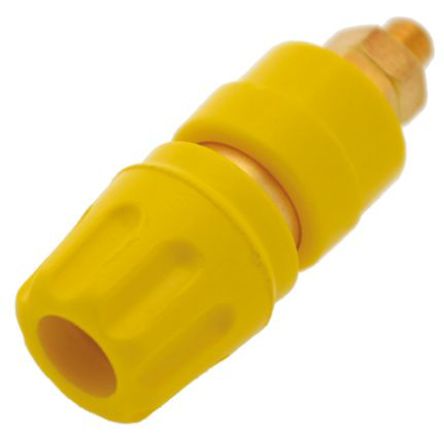

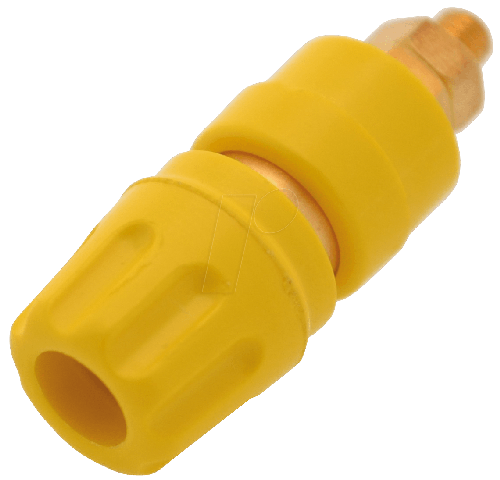

The is a yellow Pole Clamp with claw edge and captive insulated head and insulated ring. 4mm diameter gold-plated brass threaded bolt with Ø2mm transverse hole. It is suitable for insulated, non-rotating installation in equipment chassis and switch panels with a wall thickness up to 2mm. It is made of PA housing with gold-plated brass contacts.

.

2mR Contact resistance

.

UL94V-2 Flammability rating

.

-25 to 100°C Temperature range
