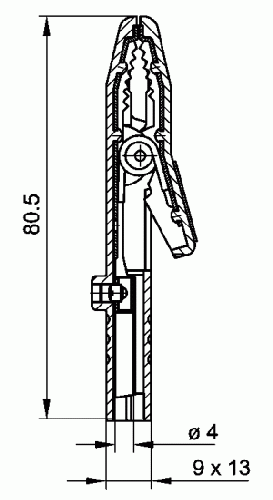

AK 2S 4 mm 鳄鱼夹长度：80.5 mm 鳄鱼夹，所有侧均提供防破裂绝缘 夹紧范围达 9.5 mm 孔直径 夹紧钳口的扁平截面由镀锡黄铜（细线夹持面）制成，可连接细导线。 防止 IEC 探头在正常位置所有侧闭合，符合 DIN 57 470 第 1 部分 Ø 4 mm 插座连接器和螺钉连接，用于达 Ø 1.5 mm 的电线 Connection type: | Screws ---|--- Connector: | Ø 4 mm Clamping range up to: | 9.5 mm Compressive force at the tip min.: | 10 N Compressive force for actuation max.: | 35 N Volume resistance max.: | 10 mΩ Permissible temperature range: | -25 °C → +80 °C Operating voltage: | 60 Vdc ### 4mm 范围

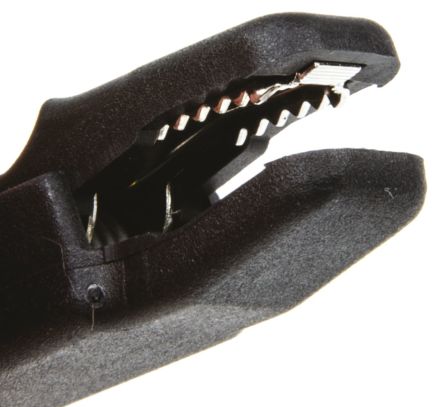

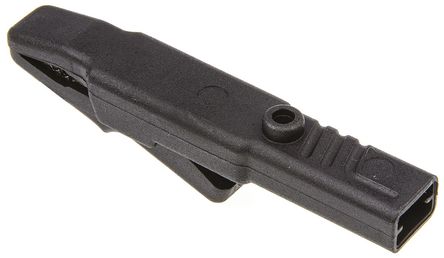

The is a 25A 30VAC/60VDC AK-2-S black Crocodile clip with PP housing, brass contact, nickel contact surface, unsprung 4mm socket/screw termination, clamp contact and 9.5mm jaw opening. This clip features high strength, insulated and screw connection up to 1.5mm². The flat part of the jaws fine wire section allows even the finest wires to be clamped.
- .
- -25 to 80°C Operating temperature range
