930136101

HIRSCHMANN TEST AND MEASUREMENT  930136101  插座, 4MM, 红色

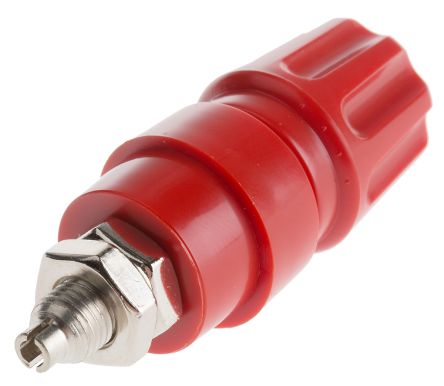

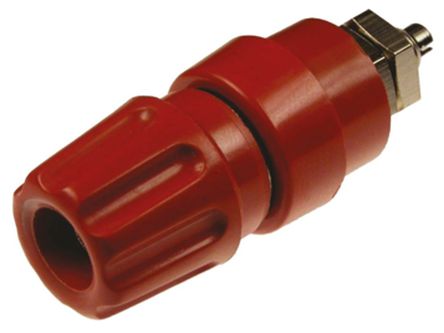

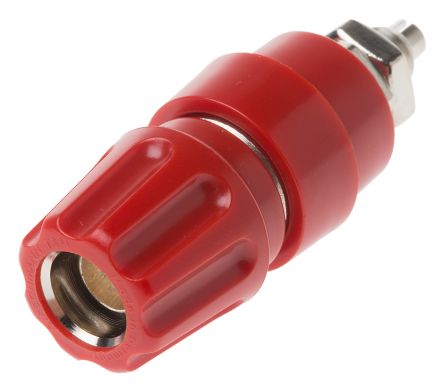

The is a 63A 30VAC/60VDC red 4mm Socket with PF housing, brass contact, nickel contact surface, screw mounting, M6 thread/solder termination, 4mm banana connector and 2mR contact resistance. Pole terminal with claw edge, captive insulated head and insulated ring. This socket for use with insulated, non-rotating installation in equipment chassis and switch panels with a wall thickness up to 3.5mm.

.

6mm diameter threaded bolt

.

2.6mm diameter transverse hole
