Conn MIL-C-5015 Circular PIN 4POS Solder RA Cable Mount 4 Terminal 1Port Automotive
4 针位圆形 插头,公引脚 焊杯
得捷:
CONN PLUG MALE 4P SILV SLDR CUP
艾睿:

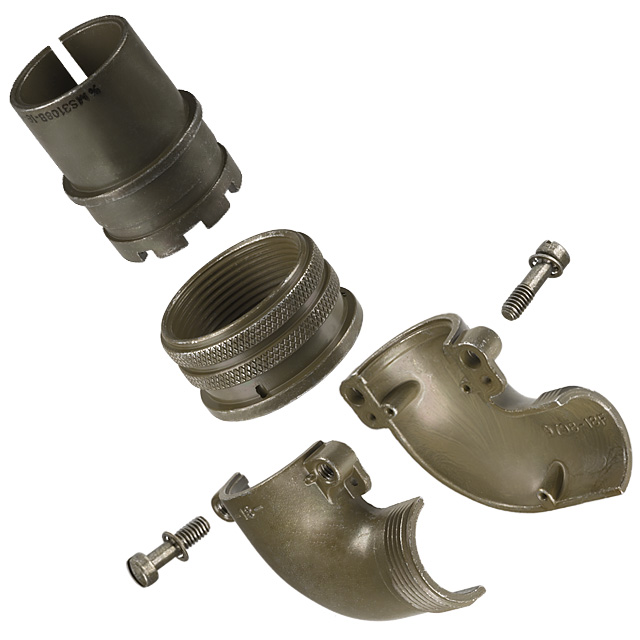

This input/output mil-c-5015 circular 97-3108B-18-4P connector from Amphenol is perfect for making a solid connection between your cylindrical cable housing. It has a right angle body orientation. Its shell size is 18-4. It has a plug type gender. This PL connector has 4 contacts that are plated with silver. This circular connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 34.11 mm deep.
Chip1Stop:
Conn MIL-C-5015 Circular PIN 4 POS Solder RA Cable Mount 4 Terminal 1 Port Automotive
Verical:
Conn Cylindrical Circular PIN 4 POS Solder RA Cable Mount 4 Terminal 1 Port Automotive
Electro Sonic:
Conn Cylindrical Circular PIN 4 POS Solder RA Cable Mount 4 Terminal 1 Port Automotive
触点数 4
极性 Male
触点电镀 Silver
额定电压DC 1.25 kV
额定电流 13 A
针脚数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 900VAC, 1250VDC
安装方式 Solder
宽度 34.11 mm
外壳颜色 Olive Drab
颜色 Olive
触点材质 Copper
绝缘材质 Plastic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 汽车级,工业级
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
军工级 Yes
