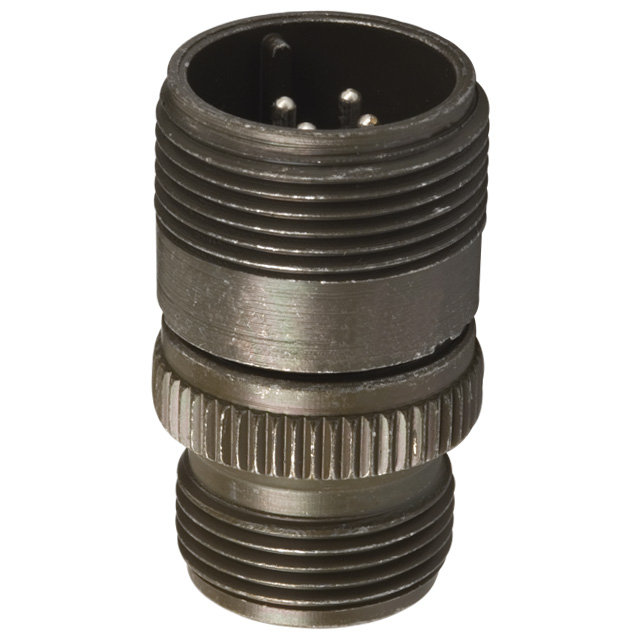

97-3101A-14S-2P

AMPHENOL INDUSTRIAL  97-3101A-14S-2P.  圆形连接器, 尺寸14S, 4路, 电缆安装

The is a 4-contact Circular Connector, 97 series, cable receptacle, 14S-2 insert arrangement, solid backshell and pin contact. Connector component is fabricated from high grade aluminium alloy, with a conductive cadmium-plated finish and an olive drab chromate after-treatment. Contact is silver plating with pre-tinned solder cups. Inserts for solder style contacts are diallyl-phthalate. Solid shell construction is strong and conserves space. Includes integral polarizing key in front shell. Machined back shell is threaded for standard MS/AN fittings. Can be unscrewed for inspection or soldering.

.

Medium to heavy weight cylindrical

.

Durable and field-proven design

.

Single key/keyway polarization

.

Threaded coupling, hard dielectric inserts

.

Non-rotating contacts
