9150006105

9150006105图片1

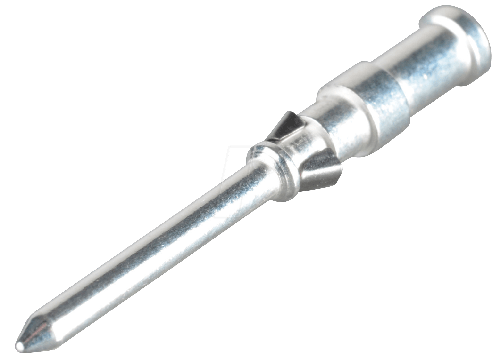

9150006105图片2
9150006105图片3
9150006105图片4
9150006105图片5
9150006105图片6
9150006105概述

Contact PIN Crimp ST Cable Mount 18AWG

Never worry about a loose connection again with this connector contact from Harting. It has a straight body orientation. This has a Connector Rectangular connector. This connector contact has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its wire is 18 AWG. This product is 25 mm long and 3.2 mm. It uses the crimp termination method.


艾睿:
Never worry about a loose connection again with this 9150006105 connector contact from Harting. It has a straight body orientation. This has a Connector Rectangular connector. This connector contact has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its wire is 18 AWG. This product is 25 mm long and 3.2 mm. It uses the crimp termination method.


Chip1Stop:
Contact PIN Crimp ST Cable Mount 18AWG


Verical:
Contact PIN Crimp ST Cable Mount 18AWG


9150006105中文资料参数规格
技术参数

极性 Male

线规 18.0 AWG

触点电镀 Silver

额定电流 10 A

额定电流Max 10 A

工作温度Max 125 ℃

工作温度Min -40 ℃

接触电阻Max 3 mΩ

物理参数

触点材质 Copper

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2014/12/17

数据手册

在线购买9150006105
型号: 9150006105
制造商: Harting Technology Group 哈丁电子
描述:Contact PIN Crimp ST Cable Mount 18AWG
