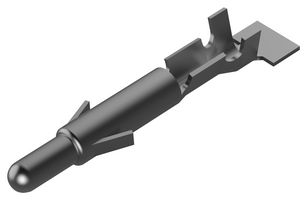

AMP FROM TE CONNECTIVITY 926885-3 触芯, Universal Mate-N-Lok系列, 公, 压接, 18 AWG, 镀锡触芯, Universal MATE-N-LOK Connectors
Easily improve a secured connection with this specially engineered connector contact from . It has a straight body orientation. This device has a maximum current rating of 19 A. This has a Connector Power connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. It uses the crimp termination method. This product is 20.7 mm long, 3.5 mm tall and 3.4 mm deep. Its wire is 18-24 AWG.
极性 Male
线规 18AWG ~ 24AWG
触点电镀 Tin
额定电压AC 600 V
额定电流 19 A
额定电流Max 19 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
额定电压 600 V
封装 -
长度 20.7 mm
宽度 3.4 mm
高度 3.5 mm
封装 -
触点材质 Phosphor Bronze
材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 照明, 商业, 便携式器材, 电源供给, 消费电子产品, Power, HVAC
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
