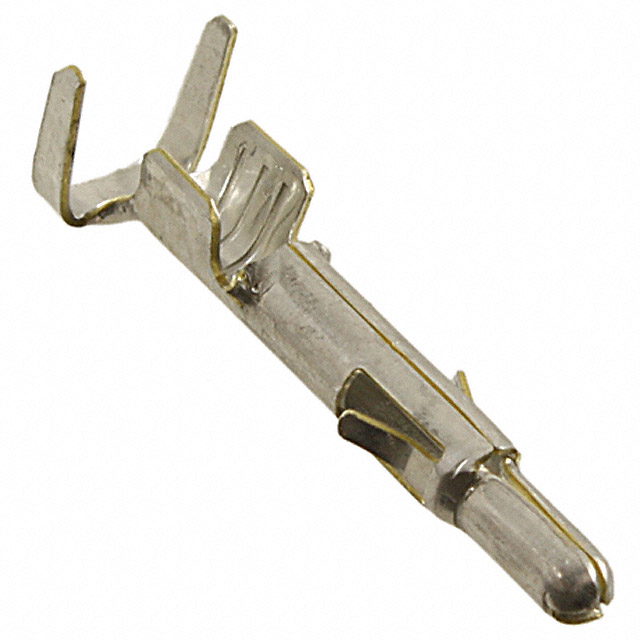

926900-1

AMP FROM TE CONNECTIVITY  926900-1  触芯, Universal Mate-N-Lok系列, 公, 压接, 13 AWG, 镀锡触芯, Universal MATE-N-LOK Connectors

UNIV-MNL STIFT

Product Highlights

Contact

Universal MATE-N-LOK

Not CompactPCI

Contact Type = Pin

Wire Range = 1.50-2.50² [15.5-13.5] mm [AWG]

立创商城:
926900-1

得捷:
CONN PIN 13-15AWG CRIMP TIN

e络盟:
触芯, Universal MATE-N-LOK系列, 公, 压接, 13 AWG, 镀锡触芯, 通用MATE-N-LOK连接器

艾睿:
This specially engineered 926900-1 connector contact from TE Connectivity provides a solid connection between the contact barriers so your connections remain secure. It has a straight body orientation. This device has a maximum current rating of 19 A. This has a Connector Power connector. This product is 21.2 mm long, 5.8 mm tall and 5.8 mm deep. Its wire is 13-15 AWG. It uses the crimp termination method.

安富利:
Contact PIN Crimp ST Cable Mount Loose Piece

Verical:
Contact PIN Crimp ST Cable Mount Automotive Box

Newark:
# AMP - TE CONNECTIVITY  926900-1  Contact, Universal Mate-N-Lok Series, Pin, 16 AWG, 13 AWG, Crimp, Brass

MASTER:
Universal M-N-L Stift DGB 1.5-2.5mm

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Online Components:
UNIV-MNL STIFT

Electro Sonic:
UNIV-MNL STIFT
