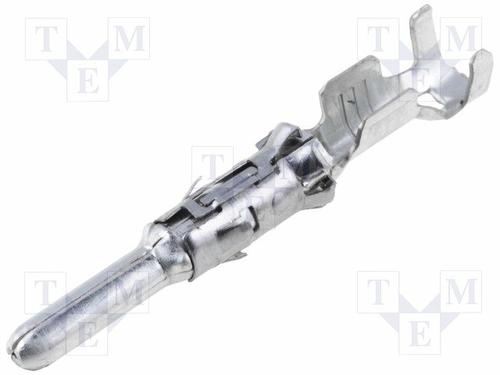

929968-1图片1

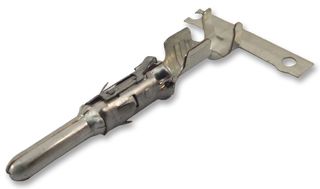

929968-1图片2

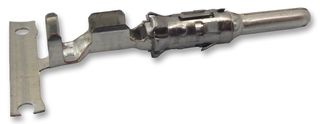

929968-1图片3

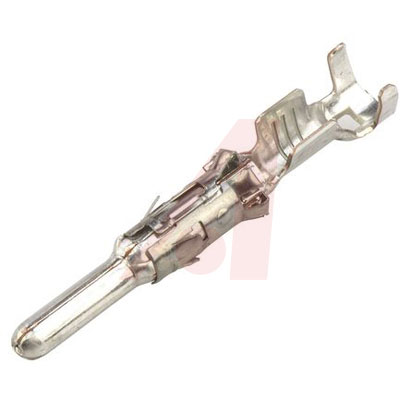

929968-1图片4

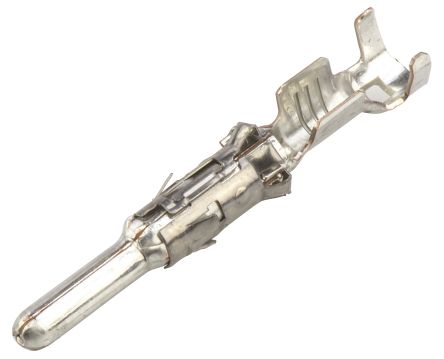

929968-1图片5
929968-1图片6
929968-1图片7
929968-1图片8
929968-1图片9
929968-1图片10
929968-1图片11
929968-1图片12
929968-1图片13
929968-1图片14
929968-1图片15
929968-1概述

AMP DIN 72585基于 DIN 72585,这系列的密封连接器设计为满足卓越性能的需求。防震 抗物理震动 宽温度范围 单线密封系统 触点兼容性 --- 插头/插座 | 触点 7 路 | 1.5mm 2 到 4 路 | 2.5mm 技术规格 --- 外壳材料 | 玻璃填充 PBT 额定电流 |   1.5mm | 25A 2.5mm | 30A 触点电阻 | 10mΩ IP 额定值 | IP67 和 IP69K 温度范围 | -40 到 +130°C

触点

单件成形构造

镀锡

电线封条与触点单独压接

### AMP DIN 72585

基于 DIN 72585,这系列的密封设计为满足卓越性能的需求。

防震

抗物理震动

宽温度范围

单线密封系统


欧时:
TE Connectivity 压接端接 公 圆形 连接器 触芯 929968-1, 使用于密封圆形连接器


得捷:
CONTACT PIN 14-16AWG CRIMP TIN


立创商城:
929968-1


e络盟:
触芯, 2.5mm System系列, 公, 压接, 13 AWG, 镀锡触芯, 密封环形连接器


艾睿:
This specially engineered 929968-1 connector contact from TE Connectivity provides a solid connection between the contact barriers so your connections remain secure. It has a straight body orientation. This has a Connector Circular connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 13-17 AWG. It uses the crimp termination method.


Allied Electronics:
Male Crimp Contact for use with Sealed Circular Connectors


安富利:
Contact PIN Crimp ST Cable Mount Strip


Chip1Stop:
Contact PIN Crimp ST Cable Mount 13-17AWG Carton Automotive


TME:
Contact; male; 1÷2.5mm2; 2.5mm System; tinned; crimped; for cable


Verical:
Contact PIN Crimp ST Cable Mount 13-17AWG Carton Automotive


Newark:
# AMP - TE CONNECTIVITY  929968-1  Contact, 2.5 mm System Series, Pin, 17 AWG, 13 AWG, Crimp, Copper Nickel Silicon


MASTER:
DIA. 2.5MM PIN CONTACT DIA 2.5mm Stiftkontakt


Powell:
1.5/2.5/4.0mm Pin Diameter Connector System


Electro Sonic:
2,5MM PIN CONTACT


929968-1中文资料参数规格
技术参数

极性 Male

线规 14AWG ~ 16AWG

触点电镀 Tin

额定电流 5.00 A

封装参数

封装 端子

外形尺寸

封装 端子

物理参数

颜色 Tin

触点材质 Copper Alloy

其他

产品生命周期 Active

包装方式 Box

制造应用 车用, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8536699099

数据手册

在线购买929968-1
型号: 929968-1
描述:AMP DIN 72585 基于 DIN 72585,这系列的密封连接器设计为满足卓越性能的需求。 防震 抗物理震动 宽温度范围 单线密封系统 触点兼容性 --- 插头/插座 | 触点 7 路 | 1.5mm 2 到 4 路 | 2.5mm 技术规格 --- 外壳材料 | 玻璃填充 PBT 额定电流 |   1.5mm | 25A 2.5mm | 30A 触点电阻 | 10mΩ IP 额定值 | IP67 和 IP69K 温度范围 | -40 到 +130°C
