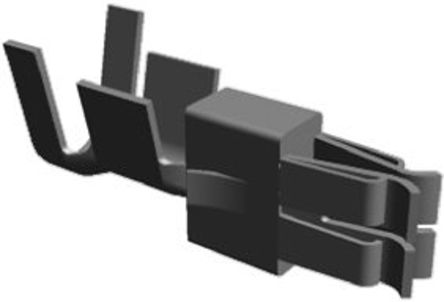

963714-1图片1
963714-1图片2
963714-1图片3
963714-1图片4
963714-1图片5
963714-1图片6
963714-1图片7
963714-1图片8
963714-1图片9
963714-1概述

AMP FROM TE CONNECTIVITY  963714-1  矩形电源连接, Standard Power Timer系列, 镀锡触芯, 铜、铁, 母, 压接

标准功率计时器触点

一系列插座和插片压接触点,适合与标准功率计时器一起使用


得捷:
CONN SOCKET 10-11AWG CRIMP TIN


欧时:
TE Connectivity Standard Power Timer 系列 母 压接端子触点 963714-1, 镀锡 铜,铁合金触芯


贸泽:
汽车连接器 STD-POW-TIM CONTACT


e络盟:
AMP FROM TE CONNECTIVITY  963714-1  矩形电源连接, Standard Power Timer系列, 镀锡触芯, 铜、铁, 母, 压接


艾睿:
This 963714-1 connector contact from TE Connectivity is will form a perfect mechanical connection, never loose data again. It has a socket type gender. It has a straight body orientation. This has a Connector Power connector. This product is 20 mm long, 6.85 mm tall and 5.8 mm deep. Its wire is 10-11 AWG. It uses the crimp termination method.


Verical:
Contact SKT Crimp ST Cable Mount Automotive Loose


Newark:
# AMP - TE CONNECTIVITY  963714-1  Rectangular Power Contact, MQS Series, Tin Plated Contacts, Copper, Iron, Socket, Crimp


Powell:
Timer Contacts


963714-1中文资料参数规格
技术参数

极性 Female

线规 10AWG ~ 11AWG

触点电镀 Tin

额定电流Max 40 A

外形尺寸

高度 6.85 mm

物理参数

触点材质 Copper Alloy

其他

产品生命周期 Obsolete

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC版本 2015/06/15

数据手册
