929967-1

AMP DIN 72585基于 DIN 72585，这系列的密封连接器设计为满足卓越性能的需求。防震 抗物理震动 宽温度范围 单线密封系统 触点兼容性 --- 插头/插座 | 触点 7 路 | 1.5mm 2 到 4 路 | 2.5mm 技术规格 --- 外壳材料 | 玻璃填充 PBT 额定电流 |   1.5mm | 25A 2.5mm | 30A 触点电阻 | 10mΩ IP 额定值 | IP67 和 IP69K 温度范围 | -40 到 +130°C

触点

单件成形构造

镀锡

电线封条与触点单独压接

### AMP DIN 72585

基于 DIN 72585，这系列的密封设计为满足卓越性能的需求。

防震

抗物理震动

宽温度范围

单线密封系统

欧时:

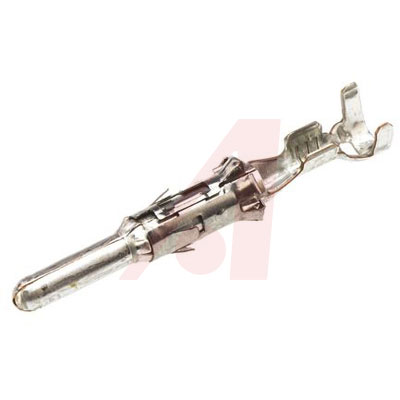

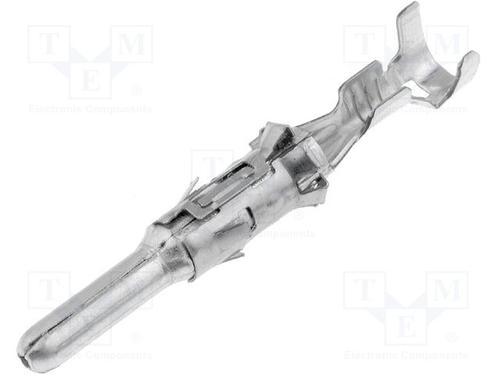

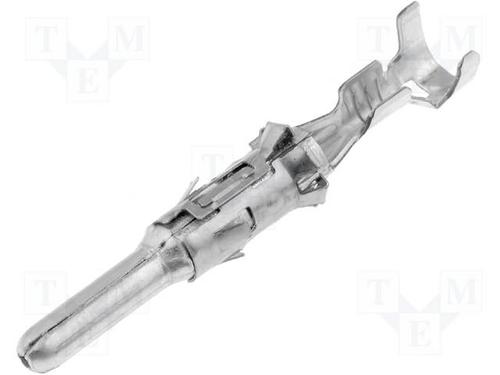

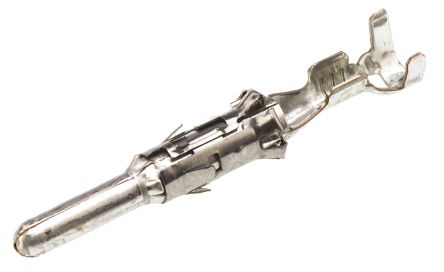

TE Connectivity AMP 系列 压接端接 公 圆形 连接器 触芯 929967-1, 使用于密封圆形连接器

得捷:
CONTACT PIN 17-20AWG CRIMP TIN

立创商城:
929967-1 非整盘发货是100一截

e络盟:
触芯, 2.5mm System系列, 公, 压接, 18 AWG, 镀锡触芯, 密封环形连接器

艾睿:
This 929967-1 connector contact from TE Connectivity is designed to perform within the specified physical and mechanical loads to provide a solid connection. It has a straight body orientation. This has a Connector Circular connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 17-20 AWG. It uses the crimp termination method. This product is 29.8 mm long, 4.8 mm tall and 4.8 mm deep.

Allied Electronics:
AMP Series; Male Crimp Contact for use with Sealed Circular Connectors

安富利:
Contact PIN Crimp ST Cable Mount Strip

TME:
Contact; male; 0.5÷1mm2; 2.5mm System; tinned; crimped; for cable

Verical:
Contact PIN Crimp ST Cable Mount 17-20AWG T/R Automotive

Newark:
# AMP - TE CONNECTIVITY  929967-1  Contact, 2.5mm System Series, Pin, Crimp, 18 AWG, Tin Plated Contacts

MASTER:
DIA. 2.5MM PIN CONTACT DIA 2.5mm Stiftkontakt

Powell:
1.5/2.5/4.0mm Pin Diameter Connector System

ICbanQ:
Automotive Connectors STIFTKONTAKT 2,5MMD

Electro Sonic:
STIFTKONTAKT 2,5MMD
