TE Connectivity 微型通用 MATE-N-LOK 触点和压接工具各种 TE Connectivity 微型通用 MATE-N-LOK 触点和压接工具系列。### 认可CSA### TE Connectivity 微型通用 MATE-N-LOK™ 系列
微型通用 MATE-N-LOK 触点和压接工具
各种 TE Connectivity 微型通用 MATE-N-LOK 触点和压接工具系列。
### 认可
CSA
欧时:

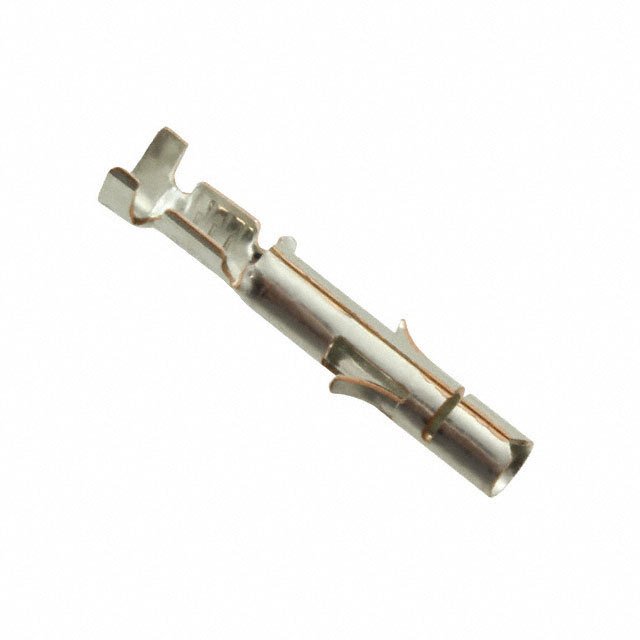

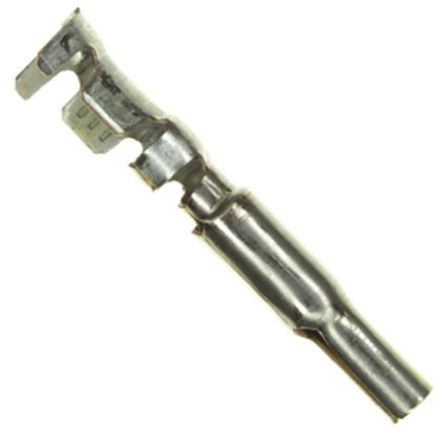

TE Connectivity Universal MATE-N-LOK 系列 母 压接端子触点 926884-3, 镀锡 磷铜触芯, 24AWG 至 18AWG
立创商城:
926884-3
得捷:
CONN SOCKET 18-24AWG CRIMP TIN
e络盟:
触芯, Universal MATE-N-LOK系列, 母, 压接, 18 AWG, 镀锡触芯, 通用MATE-N-LOK连接器
艾睿:
Look no further! This 926884-3 connector contact from TE Connectivity will form a strong bind between your wire and the connection! It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 19 A. This has a Connector Power connector. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This connector contact has an operating temperature range of -55 °C to 125 °C. Its wire is 18-24 AWG. It uses the crimp termination method. This product is 20.1 mm long, 3.5 mm tall and 3.4 mm deep.
Allied Electronics:
Contact; crimp; recpt; Mate-n-lok; 24-18 awg
安富利:
Contact SKT Crimp ST Cable Mount Strip
Verical:
Contact SKT Crimp ST Cable Mount 18-24AWG T/R Automotive
Newark:
# AMP - TE CONNECTIVITY 926884-3 Contact, Universal MATE-N-LOK Series, Socket, Crimp, 18 AWG, Tin Plated Contacts
Electro Sonic:
UNIV.M-M-L.SOCKET
极性 Female
线规 18AWG ~ 24AWG
触点电镀 Tin
额定电压AC 600 V
额定电流 19.0 A
额定电流Max 19 A
工作温度Max 105 ℃
工作温度Min -20 ℃
封装 -
高度 3.5 mm
封装 -
触点材质 Phosphor Bronze
材质 Phosphor Bronze
工作温度 -20℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 照明, 商业, 便携式器材, 电源供给, 消费电子产品, Power, HVAC
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
