927367-1

927367-1图片1

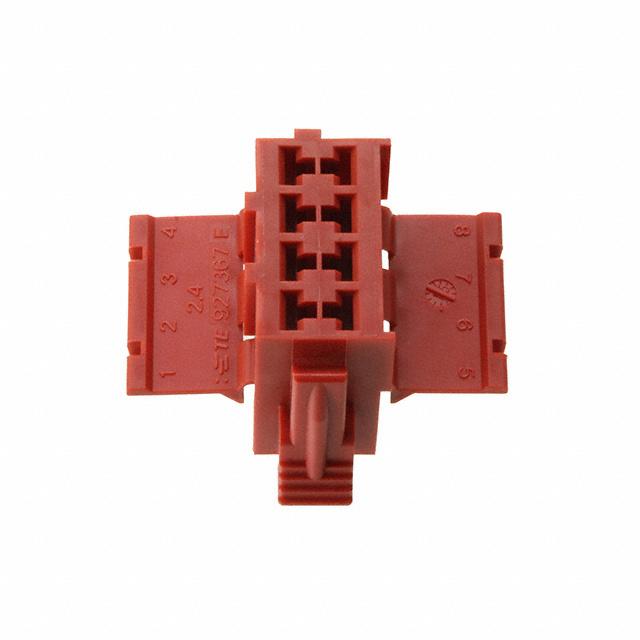

927367-1图片2
927367-1图片3

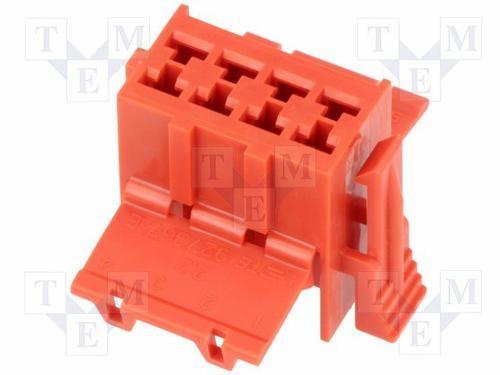

927367-1图片4
927367-1图片5
927367-1图片6
927367-1图片7
927367-1图片8
927367-1图片9
927367-1概述

AMP FROM TE CONNECTIVITY  927367-1  连接器外壳, JPT Series, 插座, 8 路, 5.08 mm, AMP初级功率定时器系列母触芯

Timer connector housings are available with a wide range of cavity options from power to high pin density PCB connections. These connectors accept Timer contacts and are available in both pin and receptacle housings.


得捷:
CONN PLUG HSG 8POS MIN


立创商城:
927367-1


贸泽:
汽车连接器 8P MIN D-FLACHF GEH


e络盟:
连接器外壳, JPT Series, 插座, 8 路, 5.08 mm, AMP初级功率定时器系列母触芯


艾睿:
TE Connectivity&s;s 927367-1 discrete wire housing provides a durable connection for discrete wires. This RCP connector has 8 RCP contacts. It has a receptacle type gender. It has a straight body orientation. 927367-1 is housed in red polyamide 6/6.


安富利:
Conn Housing RCP 8 POS Crimp ST Cable Mount


TME:
Connector: wire-board; Junior Timer; plug; female; PIN:8; red


Verical:
Conn Housing RCP 8 POS Crimp ST Cable Mount Automotive Bag


Newark:
# AMP - TE CONNECTIVITY  927367-1  RECEPTACLE HOUSING, 8POS, NYLON, RED


MASTER:
8POS. HOUSING FOR JUNIOR-TIMER CONTACT 8pol. Gehaeuse fuer Junior-Timer Kontakt


Powell:
Timer Connectors


Online Components:
8P MIN D-FLACHF GEH


Electro Sonic:
8P MIN D-FLACHF GEH


927367-1中文资料参数规格
技术参数

触点数 8

极性 Female

排数 2

针脚数 8

封装参数

引脚数 8

封装 -

外形尺寸

长度 28.8 mm

宽度 13.8 mm

高度 23 mm

封装 -

物理参数

外壳颜色 Red

颜色 Red

外壳材质 Nylon 6/6

其他

产品生命周期 Active

包装方式 Bag

制造应用 车用, Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538906000

数据手册

在线购买927367-1
型号: 927367-1
描述:AMP FROM TE CONNECTIVITY  927367-1  连接器外壳, JPT Series, 插座, 8 路, 5.08 mm, AMP初级功率定时器系列母触芯
