9-146309-0

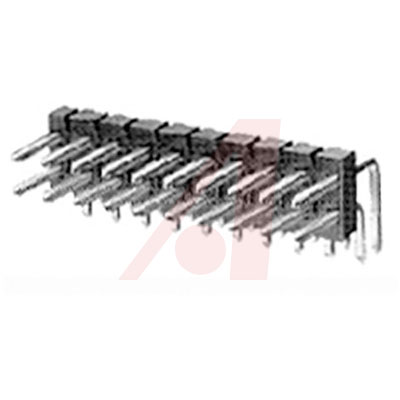

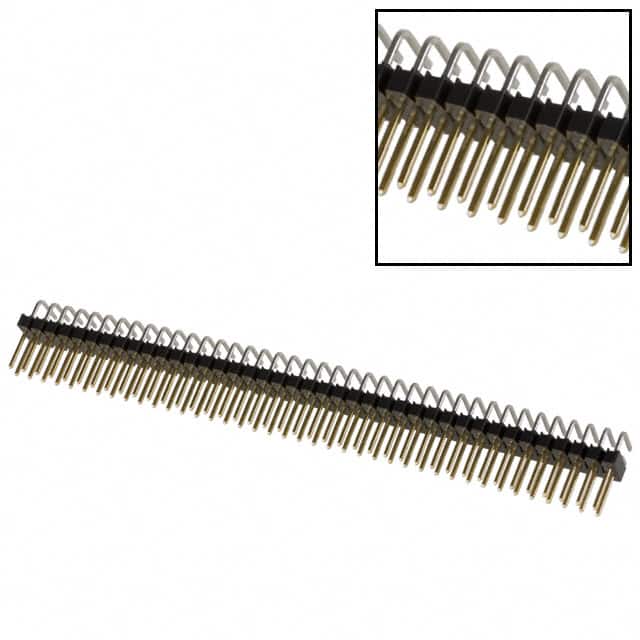

Conn Unshrouded Header HDR 80POS 2.54mm Solder RA Thru-Hole

针座 通孔，直角 80 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 80POS 2.54MM

艾睿:
This unshrouded 9-146309-0 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. This product is 101.19 mm long, 6.05 mm tall and 14.37 mm deep. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 9-146309-0 is housed in black thermoplastic.

Allied Electronics:
Header; Breakaway; 0.100 x 0.100 in.; PC Board; Dual; 80; 0.025 in.; 0.11 in.

安富利:
Conn Unshrouded Header HDR 80 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 80 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 80 POS 2.54mm Solder RA Side Entry Thru-Hole Tray

Newark:
# AMP - TE CONNECTIVITY  9-146309-0  80 MODII HDR DRRA B/A .100CL New

MASTER:
HEADER ASSEMBLY, MOD II, BREAKAWAY, HIGH TEMPERATURE,RIGHT ANGLE, DOUBLE ROW, .100 X.100 C/L, W/.025 SQUARE POSTS

Powell:
.100 inch AMPMODU Headers

Online Components:
80 MODII HDR DRRA B/A .100CL

Electro Sonic:
80 MODII HDR DRRA B/A .100CL
