99-0402-10-02

99-0402-10-02图片1

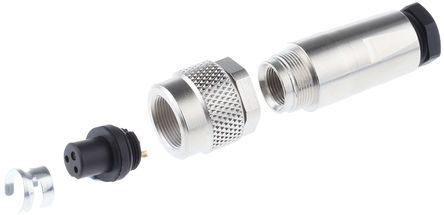

99-0402-10-02图片2

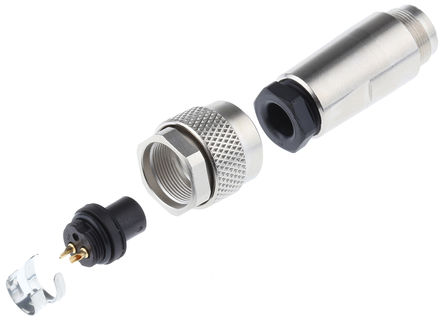

99-0402-10-02图片3
99-0402-10-02图片4
99-0402-10-02图片5

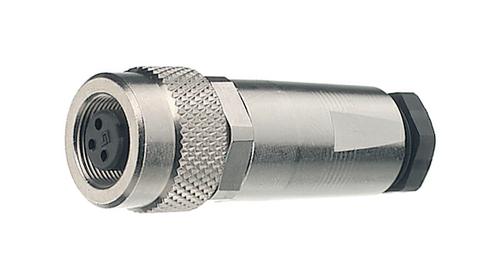

99-0402-10-02图片6
99-0402-10-02概述

Female Subminiature Cable Connector, M9, IP67, Shielded - 712 SeriesM9 female subminiature connector with IP67 ingress protection and 360° EMI protected shielding. This M9 shielded subminiature female cable connector has screw locking, solder termination and a 3.5 to 5 mm cable outlet.### Binder M9 超微型连接器,金属,IP67 - 712 系列超微型圆形连接器提供 IP65 级保护且由螺钉锁定配用。 电缆由焊槽端接。 金属前端结构确保带有坚固性能的后端塑料结构、电缆夹,用于长达 5mm 直径(最大)的电缆。 提供装配说明。

Female Subminiature Cable Connector, M9, IP67, Shielded - 712 Series

M9 female subminiature connector with IP67 ingress protection and 360° EMI protected shielding. This M9 shielded subminiature female cable connector has screw locking, solder termination and a 3.5 to 5 mm cable outlet.


欧时:
### Female Subminiature Cable Connector, M9, IP67, Shielded - 712 SeriesM9 female subminiature connector with IP67 ingress protection and 360° EMI protected shielding. This M9 shielded subminiature female cable connector has screw locking, solder termination and a 3.5 to 5 mm cable outlet.### Binder M9 超微型连接器,金属,IP67 - 712 系列超微型圆形连接器提供 IP65 级保护且由螺钉锁定配用。 电缆由焊槽端接。 金属前端结构确保带有坚固性能的后端塑料结构、电缆夹,用于长达 5mm 直径(最大)的电缆。 提供装配说明。


e络盟:
圆形连接器, 712 Series, 电缆安装插座, 2 触点, 焊接插座, 螺纹, 尼龙 聚酰胺, 黄铜主体


99-0402-10-02中文资料参数规格
技术参数

触点数 2

极性 Female

额定电流 4 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 125 V

封装参数

安装方式 Solder

物理参数

触点材质 Bronze

外壳材质 Nylon 6/6

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买99-0402-10-02
型号: 99-0402-10-02
制造商: Binder
描述:Female Subminiature Cable Connector, M9, IP67, Shielded - 712 Series M9 female subminiature connector with IP67 ingress protection and 360° EMI protected shielding. This M9 shielded subminiature female cable connector has screw locking, solder termination and a 3.5 to 5 mm cable outlet. ### Binder M9 超微型连接器,金属,IP67 - 712 系列 超微型圆形连接器提供 IP65 级保护且由螺钉锁定配用。 电缆由焊槽端接。 金属前端结构确保带有坚固性能的后端塑料结构、电缆夹,用于长达 5mm 直径(最大)的电缆。 提供装配说明。
