9GV0412J301

SANYO DENKI - SANACE FANS  9GV0412J301  轴流风扇, 高性能, 滚珠, San Ace 40系列, 12 VDC, 40 mm, 28 mm, 24 cu.ft/min, 0.68 m³/min

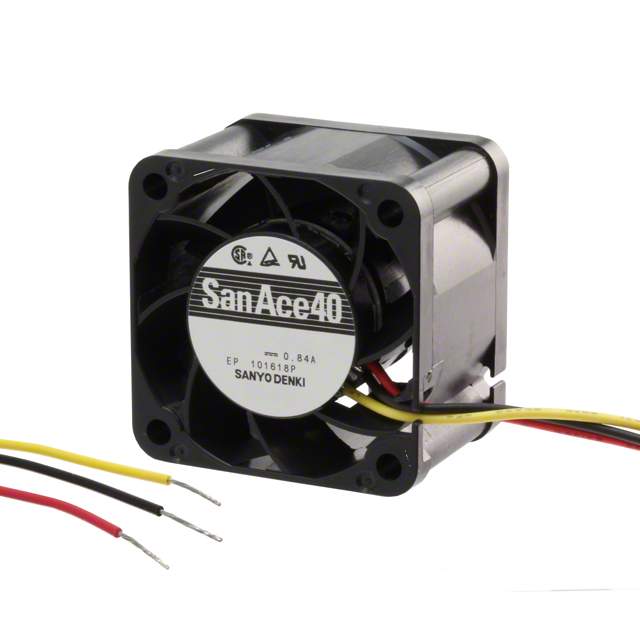

The is a 12VDC 28mm thick Axial Fan with pulse sensor, ball bearing and wire leaded power connection. This San Ace 40-series 9GV-type fan comes with plastic frame and impeller. UL1007, 26AWG +red and -black or blue, yellow sensor lead wire. Clockwise direction of rotation viewed from front of fan blade and continuously run in a free air state.

.

UL94V-0 Flammability rating

.

14700RPM Speed rating

.

-20 to 60°C Operating temperature range

.

7.2W Rated power

.

1.325"-H2O Static pressure

.

Ribbed frame

.

Current blocking function with reverse polarity protection

.

10MR or more at 500VDC Megger between lead conductor and frame insulation resistance

.

Burnout protection at locked rotor condition

.

1500VAC for one minute Dielectric strength
