99.0615.00.05参数规格_中文资料_数据手册PDF

99.0615.00.05概述

20 mm ### Binder Series 678, bayonet### Miniature round plug connector, Binder 678Distortion protection coding lug guarantees secure positioning Strain relief: internal through cable clip Installation with self-cutting metal screw Current rating: | 1 - 7 A ---|--- Voltage rating: | 60 - 250 V Connection cross-section: | 0.14 - 0.75 mm Locking: | Bayonet Connection type: | Solder Mating cycles: | 500 Protection class: | IP 40 Cable outlet: | 4 - 6 mm/ 6 - 8 mm Temperature range: | -40°C → +85°C

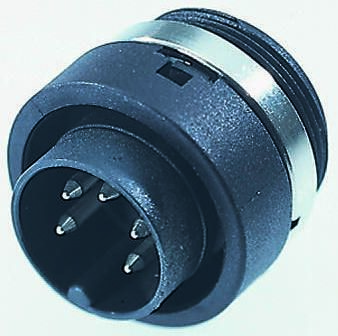

法兰安装插头

直径 = 20 mm

### Miniature round plug connector, 678

Distortion protection coding lug guarantees secure positioning

Strain relief: internal through cable clip

Installation with self-cutting metal screw

欧时:
MINI CHASSIS PLUG 5 WAY

99.0615.00.05中文资料参数规格

技术参数

触点数 5

极性 Female

触点电镀 Silver

额定电压AC 250 V

额定电流 6 A

易燃性等级 UL 94 V-0

接触电阻 5.00 mΩ

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 250 V

封装参数

安装方式 Panel, Solder

物理参数

触点材质 Brass

外壳材质 Nylon

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买99.0615.00.05

型号： 99.0615.00.05

制造商： Binder

描述：20 mm ### Binder Series 678, bayonet ### Miniature round plug connector, Binder 678 Distortion protection coding lug guarantees secure positioning Strain relief: internal through cable clip Installation with self-cutting metal screw Current rating: | 1 - 7 A ---|--- Voltage rating: | 60 - 250 V Connection cross-section: | 0.14 - 0.75 mm Locking: | Bayonet Connection type: | Solder Mating cycles: | 500 Protection class: | IP 40 Cable outlet: | 4 - 6 mm/ 6 - 8 mm Temperature range: | -40°C → +85°C
