925-118C-51S

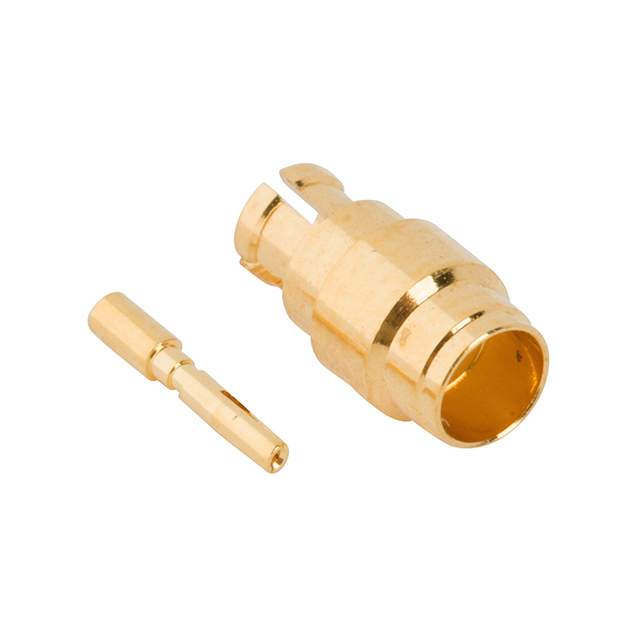

925-118C-51S图片1
925-118C-51S图片2
925-118C-51S图片3
925-118C-51S图片4
925-118C-51S概述

AMPHENOL RF  925-118C-51S  RF COAXIAL, SMPM, PLUG, 50 OHM, CABLE 新

The is part of the SMPM series, a micro-miniature interface with a frequency range of DC to 65GHz. It is commonly used in miniaturized high frequency coaxial applications and is offered in full detent and smooth bore products providing secure engagement/disengagement forces. This family of interconnects addresses small-package design needs. It can be utilized for high-speed signal transmission applications or in blind-mate, board-to-board systems using a floating bullet. This floating bullet provides a link between mated pairs and compensates for both radial and axial misalignment. With a cable-to-board mated pair, the plug side is available in either right angle or straight configurations with terminations to both 0.047" and 0.086" semi-rigid or conformable coax, as well as RG-178 flexible coax. The PCB receptacles are designed for surface, through-hole, or end-launch mounting.

.
RF performance DC to 65GHz
.
Push-on and snap-on mating styles for quick installation
.
Board to board minimum spacing: 8.65mm
925-118C-51S中文资料参数规格
技术参数

触点电镀 Gold

绝缘电阻 5000 MΩ

拔插次数 100

工作温度Max 165 ℃

工作温度Min -65 ℃

物理参数

触点材质 Beryllium Copper

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 通信与网络, 射频通信, 信号处理, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99
