9GA0812P4J001

DC Fan Axial Ball Bearing 12V 10.8V to 13.2V 73CFM 48dB 80 X 80 X 25mm Low Noise/Low Power Consumption

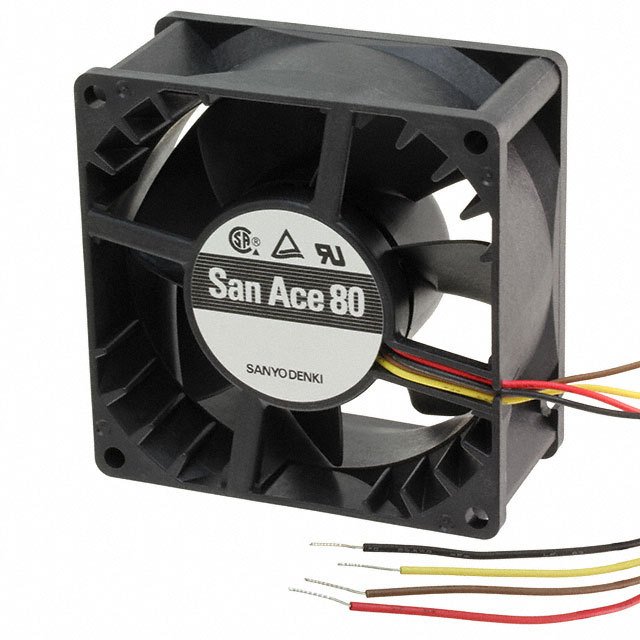

The is a 12VDC 25mm thick Axial Fan with PMW speed control function and pulse sensor, low power consumption. Ball bearing and wire leaded power connection. This San Ace 80-series 9GA-type fan comes with plastic frame and impeller. UL1007, 26AWG +red and -black, brown lead wire. Clockwise direction of rotation viewed from front of fan blade and continuously run in a free air state.

.

UL94V-0 Flammability rating

.

2500/7400RPM Speed rating

.

-20 to 70°C Operating temperature range

.

0.96/7.2W Rated power

.

0.08/0.7"-H2O Static pressure

.

Ribbed frame

.

Current blocking function with reverse polarity protection

.

10MR or more at 500VDC Megger between lead conductor and frame insulation resistance

.

Burnout protection at locked rotor condition

.

1500VAC for one minute Dielectric strength
