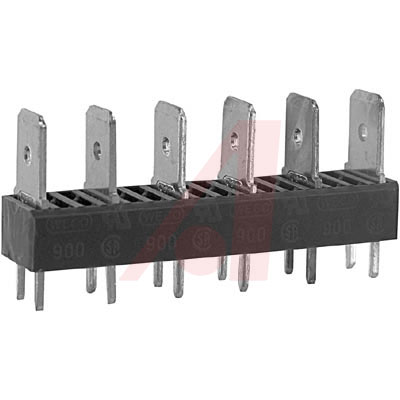

900-SUN-7.5/06

Connector, Tab; Tab Connection; SUN; 7mm; 6; 0.051in.

Tab Connectors For Printed Circuit Boards

Series 90 tab width, 6.3 mm 0.250 in.; a choice of spacing can be 5, 7.5, or 10 mm to meet the need of designs with higher voltages or larger air and creepage distances. Note that does not supply the matching female Quick-On type connectors. The use of tin plated copper alloy ensures good solderability.

.

* Specifications** . ** Insulating Material** : Polyamide, self extinguishing to UL 94, V-2, color gray or red or UL 94, V-0, color white or black. ** Temperature Limits** : Short-time — 140°C/284°F; Continuous — RTI 105°C/221°F; Low limits — -40°C/-40°F. ** Comparative Tracking Index** : CTI >600\. ** Oxygen Index Rating** : 25% UL File E69841 — 15 A, 300 V. ** 900-SUN are available** : 5 mm 02 to 25 poles, 7.5 02 to 17 poles, and 10 mm 02 to 13 poles

The solder pin size is 0.04 in. x 0.03 in.
