Conn; TermBlk; PCB; PinHeader; Straight; 9Pole; 5mmPitch; Black; 10A; 300V; Solder

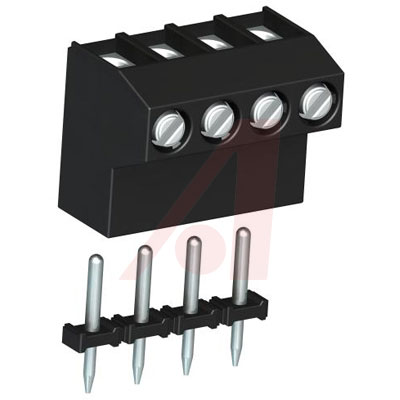

The pin strip header type 971-SLR replaces the former type 971-SLK. It is a 5 mm pitch pin strip header with pins that are 1.0 mm diameter at the PCB end and 1.3 mm diameter at the plug end. For other non standard pins please see PDF document in the Download Center.
It is suitable for both, wave soldering process, and high temperature soldering process. The product is built out of materials which meet RoHS soldering temperature and tin whisker mitigation requirements.
Molding: the high temperature resistant resin.
Pin: Matte tin and nickel plated copper alloy pin.
Standoffs on the plastic part allow hot-air circulation near the solder lands and inspection of the soldered pads.
The pin strips type 971-SLR can be packed with removable pick caps in deep embossed tape and reel, suitable for auto-loading pick and place processes.
They can also be supplied loose in cartons for hand placement.
For through hole reflow process applications THR is offering the type 971-SLR-THR. There is a difference in design of the PCB portion of the pin.
