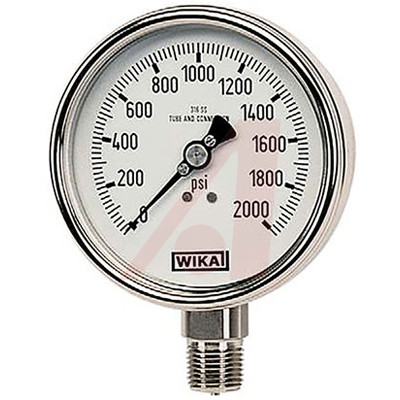

9831784 Analogue Positive Pressure Gauge Bottom Entry, Connection Size 1/4 NPT
* 304 Stainless Steel Case with Vent Plug and Polished Stainless Steel Bayonet Ring
* 316L SS Wetted Parts
* Lower Mount
* Laminated Safety Glass with Buna-N Gasket Window
* White Aluminum Dial with Black Lettering and Stop Pin
* Glycerine Filled
* Ambient Operating Temperature Glycerine Filled: –4°F to +140°F –20°C to +60°C
* Accuracy: 21⁄2": ±2/1/2% of Span ASME B40.100 Grade A, 4": ±1% of Span ASME B40.100 Grade 1A
**Applications:**
* Intended for Adverse Service Conditions Where Pulsating or Vibration Exists
* Process Industry: Chemical/Petrochemical, Power Stations, Mining, On and Offshore, Environmental Technology, Mechanical Engineering and Plant Construction
* Suitable for Gaseous or Liquid Media That Will Not Obstruct the Pressure System
Brand/Series 233.54 Series
Connecting Thread 1/4 NPT
Diameter 2.5 "
Fluid Type Oil
Gauge Range 30 in. Hg/psi
Material 304 Stainless Steel Case, 316 Stainless Steel Wetted Part, Black Aluminum Pointer, Safety Glass Window, Stainless Steel Polished Ring, White Aluminum Dial
Mounting Orientation Lower
Mounting Type Lower Mount
Type Analog
