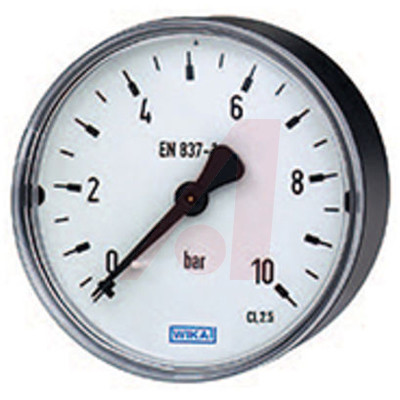

9690586 Analogue Positive Pressure Gauge Back Entry, Connection Size 1/4 NPT
* Copper Alloy Wetted Parts
* Center Back Mount Process Connection
* Snap-In Acrylic Window
* White Plastic Dial
* Black Plastic Pointer
* Ambient Operating Temperature: –40°F to +140°F –40°C to +60°C
* Accuracy: ±3/2/3% of Span
**Applications:**
* Hydraulic and Pneumatic Systems
* Pumps, Compressors, Water Systems, Regulators
* Suitable for Fluid Medium Which Does Not Clog Connection Port or Corrode Copper Alloy
Allied Electronics:
9690586 Analogue Positive Pressure Gauge Back Entry, Connection Size 1/4 NPT
Brand/Series 111.12 Series
Connecting Thread 1/4 NPT
Diameter 2 "
Fluid Type Air, Oil
Gauge Range 30 in. Hg/psi/kPA
Material Aluminum Dial, Pointer, Black ABS Case, Pointer, Copper Alloy Wetted Part, Clear Plastic Window, White ABS Dial
Mounting Orientation Lower
Mounting Type Center Back
Type Analog
