941-T-DS/02

Conn; Term Blk; PCB; Screw; 2; 5.08mm; 26-14AWG; Gray; 15A; 300V

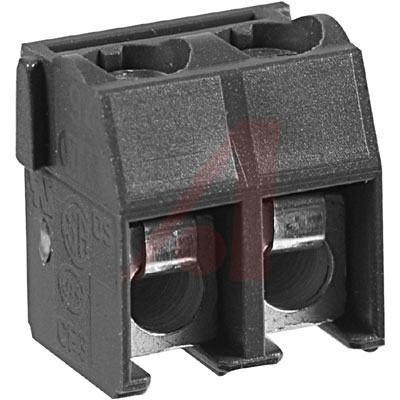

PCB Screw Connector, 300 V Voltage Rating, Polyamide Body Material, Grey Color

All products feature dovetail interlocking, which allows for assembly to the required number of poles while maintaining center to center spacing.

.

* Specifications. Insulating Material:** Polyamide, self extinguishing to UL 94, V-0, color gray. ** Temperature Limits:** Short Time — 140°C/284°F; Continuous — RTI 105°C/221°F; Low Limit — -40°C/-40°F. ** Comparative Tracking Index:** CTI >600\. ** Oxygen Index Rating:** 32%. UL File E69841. CSA File LR24322.

2500 V rated impulse withstand voltage, tin plated copper alloy terminal material.
