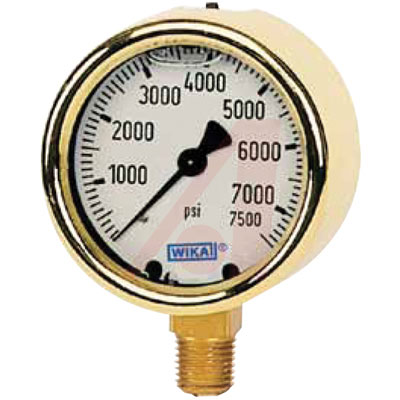

9325107 Analog Positive Press Gauge Bottom Entry 7500psi, Connection Size 1/4 NPT
* Gold Painted Forged Brass Case with Integral Connection and Vent Plug
* Copper Alloy Wetted Parts
* Lower Mount
* Acrylic Window with Buna-N Gasket
* SS, Crimped Window Ring
* White Aluminum Dial
* Black Aluminum Pointer
* Glycerine Case Fill 99.7%
* Ambient Operating Temperature Glycerine Filled: –4°F to +140°F –20°C to +60°C
* Accuracy: ±2/1/2% Span
**Applications:**
* Intended for Adverse Service Conditions Where Pulsation or Vibration Exists
* Suitable for Gaseous or Liquid Media That Will Not Obstruct the Pressure System
* Hydraulics and Compressors
Brand/Series 213.40 Series
Connecting Thread 1/4 NPT
Diameter 2.5 "
Fluid Type Gaseous, Liquid Media
Gauge Range 7500 PSI
Material ABS Ring, Acrylic Window, Black Aluminum Pointer, Copper Alloy Wetted Part, Forged Brass Case, White Aluminum Dial
Mounting Orientation Lower
Mounting Type Lower Mount
Type Analog
