96.031.1053.1

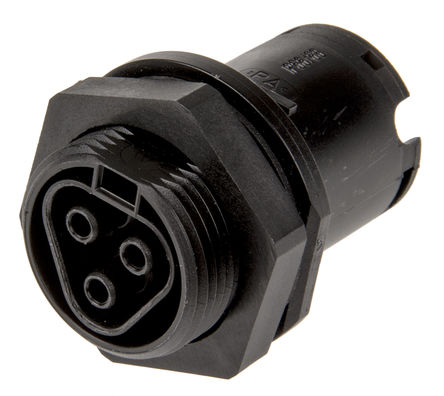

96.031.1053.1图片1

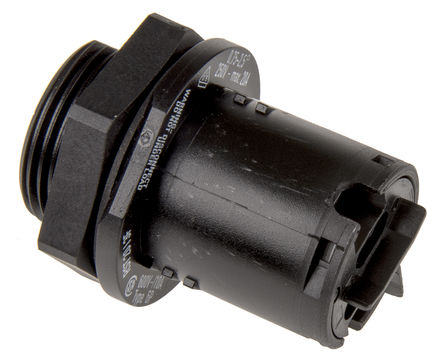

96.031.1053.1图片2
96.031.1053.1图片3
96.031.1053.1图片4

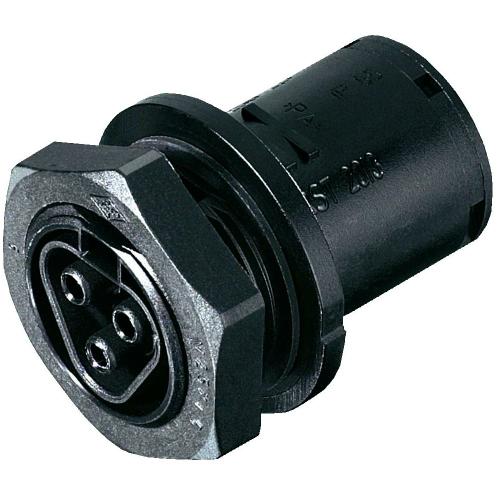

96.031.1053.1图片5
96.031.1053.1图片6
96.031.1053.1概述

Gesis® Appliance ConnectorsGesis® appliance connectors with M25 or M20 threads, with spring termination, for solid cable between 0.5 to 2.5 mm² and stranded cable between 0.5 to 1.5 mm². Panel mount with 2 connections for each pole. Connectors lock together. Simple and quick to install. ### Gesis RST 连接器系列

Gesis® Appliance Connectors

Gesis® appliance connectors with M25 or M20 threads, with spring termination, for solid cable between 0.5 to 2.5 mm² and stranded cable between 0.5 to 1.5 mm². Panel mount with 2 connections for each pole. Connectors lock together. Simple and quick to install.


欧时:
3 pole connector,female,spring term,M25


Verical:
Conn Circular F 3 POS Screw ST Cable Mount 3 Terminal 1 Port Box


MASTER:
Conn Circular F 3 POS Screw ST Cable Mount 3 Terminal 1 Port Box


Electro Sonic:
Conn Circular F 3 POS Screw ST Cable Mount 3 Terminal 1 Port Box


96.031.1053.1中文资料参数规格
技术参数

触点数 3

极性 Female

额定电流 20 A

额定电流Max 20 A

额定电压Max 250 V

额定电压 250 V

封装参数

安装方式 Screw

外形尺寸

高度 36.95 mm

物理参数

颜色 Black

触点材质 Brass

其他

包装方式 Box

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694020

数据手册

在线购买96.031.1053.1
型号: 96.031.1053.1
制造商: Wieland
描述:Gesis® Appliance Connectors Gesis® appliance connectors with M25 or M20 threads, with spring termination, for solid cable between 0.5 to 2.5 mm² and stranded cable between 0.5 to 1.5 mm². Panel mount with 2 connections for each pole. Connectors lock together. Simple and quick to install. ### Gesis RST 连接器系列
