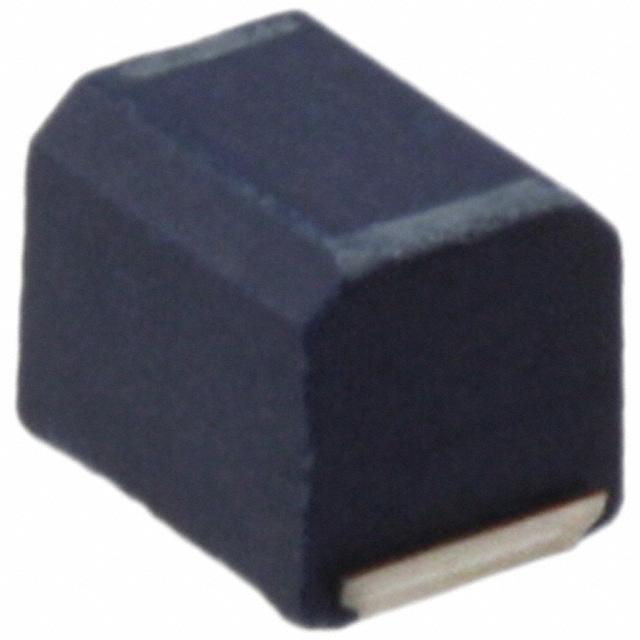

TDK NL453232T-331J-PF 表面贴装高频电感器, NL系列, 330 µH, ± 5%, 1812 [4532 公制], 3.5 MHz, 14 ohm
固定器
立创商城:
330uH ±5% 85mA
得捷:
FIXED IND 330UH 85MA 14 OHM SMD
e络盟:
高频电感器, 330 µH, NL系列, 85 mA, 1812 [4532 公制], 绕线, 14 ohm
艾睿:
This rf chip NL453232T-331J-PF surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 330u H. Its test frequency is 796K Hz, while its minimum self-resonant frequency is 3.5M Hz. This device utilizes wirewound technology. This product is 4.8 mm long, 3.4 mm tall and 3.4 mm deep. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 85m A with a maximum resistance of 14 Ohm.
安富利:
Ind General Purpose Chip Wirewound 330uH 5% 796KHz 40Q-Factor 85mA 1812 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 330uH 5% 796KHz 40Q-Factor Ferrite 0.085A 14Ohm DCR 1812 T/R
Newark:
# TDK NL453232T-331J-PF Surface Mount High Frequency Inductor, NL Series, 330 H, 5%, 1812 [4532 Metric], 3.5 MHz, 14 ohm
儒卓力:
**NL453232T 330uH 85mA 5% WWT **
Electro Sonic:
Inductor RF Chip Unshielded Wirewound 330uH 5% 796KHz 40Q-Factor Ferrite 85mA 14Ohm DCR 1812 T/R
Win Source:
330μH Unshielded Wirewound Inductor 85mA 14 Ohm Max 1812 4532 Metric
额定电流 85 mA
容差 ±5 %
电感 330 µH
自谐频率 3.5 MHz
Q值 40.0
产品系列 NL
电感公差 ±5 %
测试频率 0.796 MHz
电阻DC) 14 Ω
额定电流DC 85 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±5 %
电阻DC Max 14 Ω
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 3.2 mm
封装公制 4832
封装 1812
重量 0.18 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NL453232T-331J-PF TDK 东电化 | 当前型号 | 当前型号 |
ELJ-FB331JF 松下 | 功能相似 | NL453232T-331J-PF和ELJ-FB331JF的区别 |
