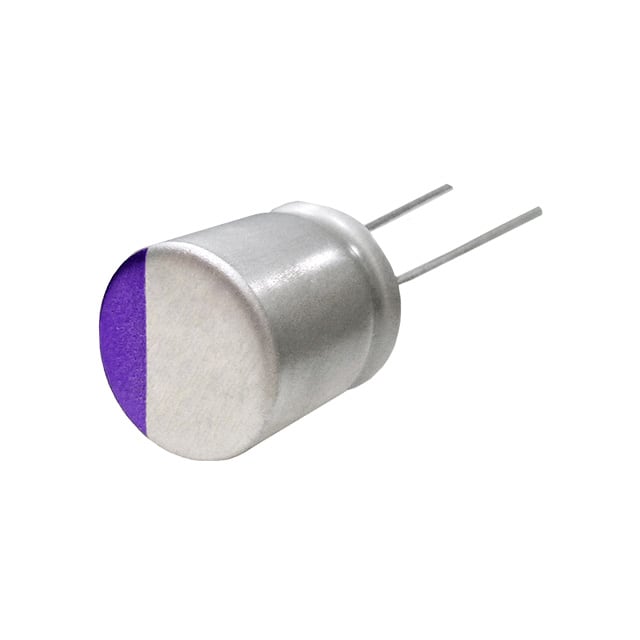

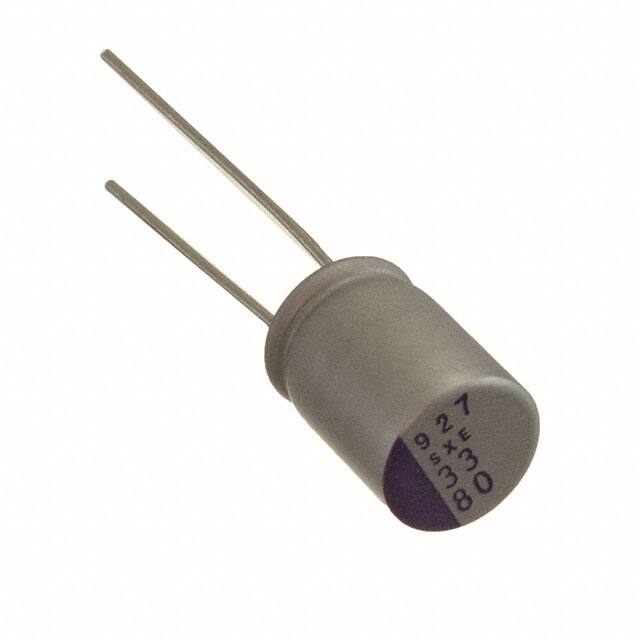

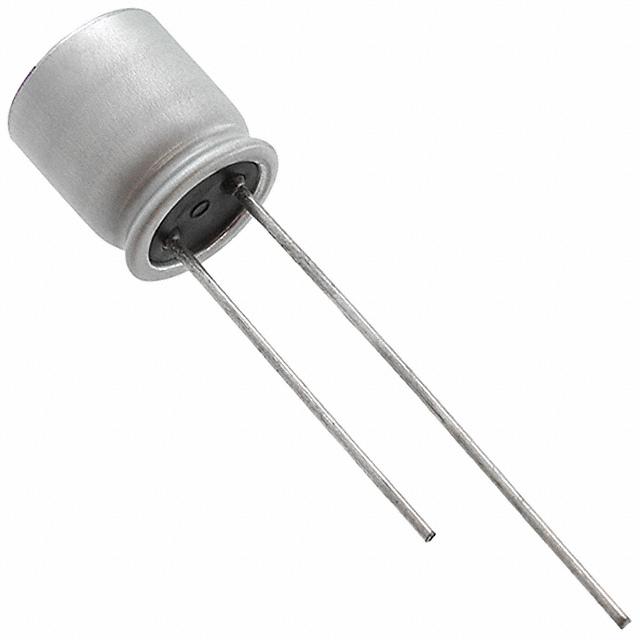

2SEPC1000MX

PANASONIC ELECTRONIC COMPONENTS  2SEPC1000MX  铝电解电容, OS-CON, SEPC系列, 1000 µF, 0.007 ohm, 2.5 V, 5000 hours @ 105°C

1000 µF 2.5 V 铝聚合物器 径向，Can 7 毫欧 105°C 时为 5000 小时

得捷:
CAP ALUM POL 1000UF 20% 2.5V T/H

欧时:
Capacitor Radial SEPC series 2.5V 1000uF

立创商城:
1000uF 2.5V

e络盟:
聚合物铝电解电容器, 1000 µF, 2.5 V, SEPC系列, 0.007 ohm, 5000 hours @ 105°C

艾睿:
Add Panasonic&s;s 2SEPC1000MX conductive polymer aluminum solid capacitors within your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes. It can withstand a voltage of 2.5 VDC. Users like its long lead wire form. It has 2 terminals. This part has a lead diameter of 0.6 mm. This product&s;s terminal pitch is 3.5 mm. Its leakage current is 500@2Min μA. The 2SEPC1000MX conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 9Max mm tall with a diameter of 8 mm.

安富利:
Cap Aluminum 1000uF 2.5V 20% 8 X 9mm Radial Cylindrical 3.5mm 6100mA 5000hr 105°C Bulk

Chip1Stop:
Cap Aluminum Polymer 1000uF 2.5VDC 20% 8 X 9mm Radial 3.5mm 0.007 Ohm 6100mA 2000h 105C Bulk

Verical:
Cap Aluminum Polymer 1000uF 2.5VDC 20% 8 X 9mm Radial 3.5mm 0.007 Ohm 6100mA 2000h 105C Bulk
