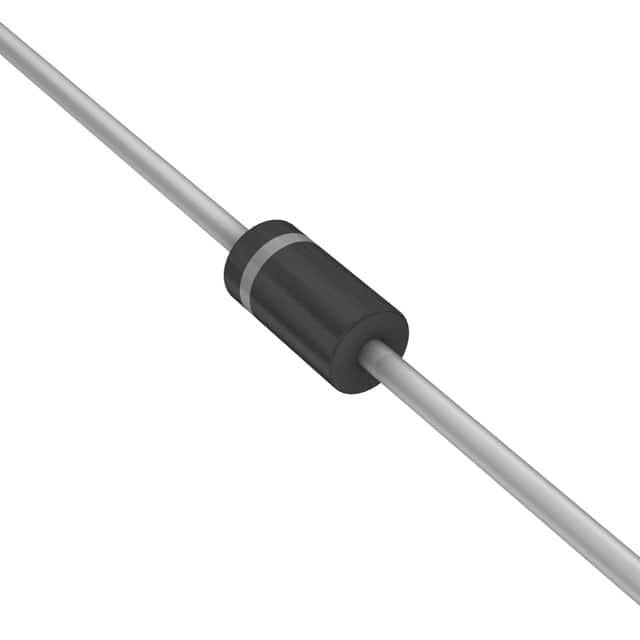

1N4751A

1瓦DO- 41密封式玻璃齐纳稳压器 1 Watt DO-41 Hermetically Sealed Glass Zener Voltage Regulators

This is a complete series of 1 Watt Zener diode with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead hermetically sealed glass package that offers protection in all common environmental conditions.

Features

---

 |

.

Zener Voltage Range - 3.3 V to 91 V

.

ESD Rating of Class 3 >16 KV per Human Body Model

.

DO-41 DO-204AL Package

.

Double Slug Type Construction

.

Metallurgical Bonded Construction

.

Oxide Passivated Die

Mechanical Characteristics:

.

CASE: Double slug type, hermetically sealed glass

.

FINISH: All external surfaces are corrosion resistant and leads are readily solderable

.

MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16" from the case for 10 seconds

.

POLARITY: Cathode indicated by polarity band

.

MOUNTING POSITION: Any
