B41858C3568M000概述

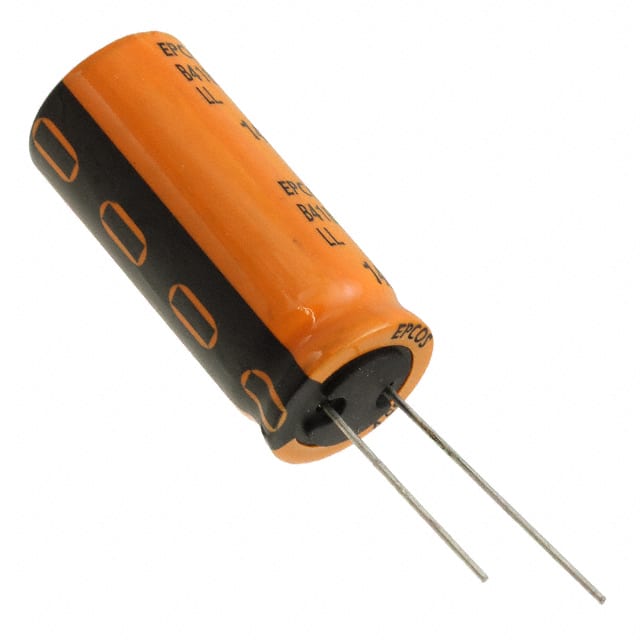

铝电解电容器 Aluminum electrolytic capacitors
5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 30mOhm @ 10kHz 5000 Hrs @ 105°C
B41858C3568M000中文资料参数规格
其他
阻抗Max 0.025Ω
Discontinue Issue Date 2018/06/22 12:59:59
工作温度Min -55℃
Max. ESR Measurement Condition 10kHz, 20°C
DC额定电压 10V
端子类型 Standard leads, bulk
Last Shipment Date 2018/12/31 12:59:59
Last Purchase Order Date 2018/09/30 12:59:59
ESR Max 0.03Ω
额定纹波电流 2.858A
额定寿命 >5000h
Rated Ripple Current Condition 100kHz, 105°C
容值 5.6mF
Max. Impedance Measurement Condition 100kHz, 20°C
长度 40.00mmMax.
Length Max. / mm 40
工作温度Max 105℃
直径 12.5mm
Features Low impedance
符合标准
RoHS标准
含铅标准 Lead Free
