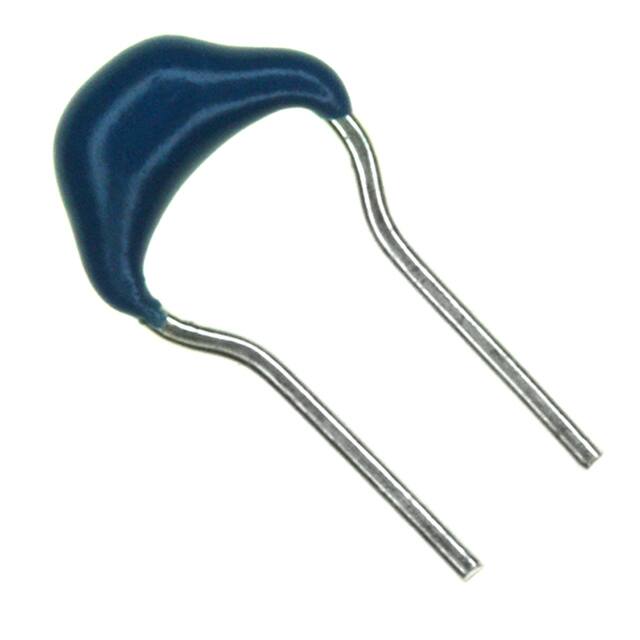

FK11X7S1H106KR020

Lead Diameter Min. / mm 0.47

Feature General Up to 50V

Withstanding Voltage / Vdc 125

Application Commercial Grade

引脚长度 5mm for Bulk

Recommended Alternate Part No. FG11X7R1H106KRT00

长度 5.50mmMax.

Length Max. / mm 5.5

引线直径 0.50mm +0.10,-0.03mm

Lead Diameter Max. / mm 0.6

AEC-Q200 No

Lead Gap Min. / mm 1.7

Thickness | Height Max. / mm 4

偏差 ±10%

温度系数材质 X7S

引脚间距 2.50mm ±0.80mm

Dissipation Factor Max. / % 5

Change Rate of Temperature Characteristic ±22%

宽度 7.00mmMax.

容值 10uF

电压 50V

Width Max. / mm 7

Soldering Method Wave Flow

厚度 4.00mm Max.

绝缘电阻 50M Ohms

Lead Gap Max. / mm 3.3

Lead Gap Nom. / mm 2.5

Lead Diameter Nom. / mm 0.5

制造应用 通用

RoHS标准 RoHS Compliant

含铅标准 Lead Free
