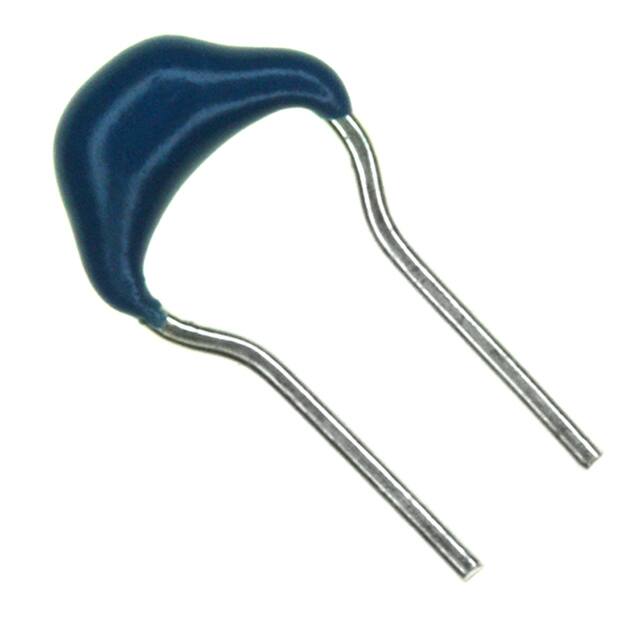

Cap Ceramic 33uF 6.3V X5R 20% Radial 2.5mm 85℃ Ammo Pack
33µF ±20% 6.3V Ceramic Capacitor Radial
得捷:
CAP CER 33UF 6.3V X5R RADIAL
Lead Diameter Min. / mm 0.47
Feature General Up to 50V
Withstanding Voltage / Vdc 15.75
Application Commercial Grade
引脚长度 Taping
Recommended Alternate Part No. FG16X5R1E336MRT06
长度 5.50mmMax.
Length Max. / mm 5.5
引线直径 0.50mm +0.10,-0.03mm
Lead Diameter Max. / mm 0.6
AEC-Q200 No
Lead Gap Min. / mm 2.3
Thickness | Height Max. / mm 3.5
偏差 ±20%
温度系数材质 X5R
引脚间距 2.50mm +0.50,-0.20mm
Dissipation Factor Max. / % 15
Change Rate of Temperature Characteristic ±15%
宽度 6.00mmMax.
容值 33uF
电压 6.3V
Width Max. / mm 6
Soldering Method Wave Flow
厚度 3.50mm Max.
绝缘电阻 3M Ohms
Lead Gap Max. / mm 3
Lead Gap Nom. / mm 2.5
Lead Diameter Nom. / mm 0.5
RoHS标准 RoHS Compliant
含铅标准 Lead Free
